FP403

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Contacte a su experto de ORBIS
De el primer paso hacia una cadena de suministro y un negocio mas sustentable.

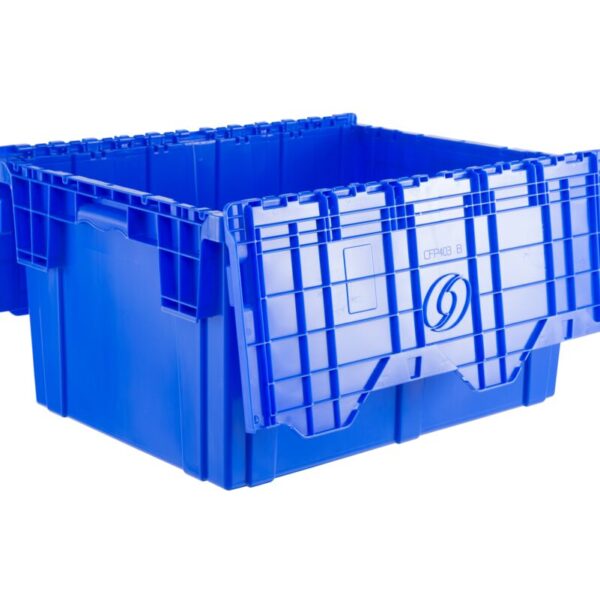

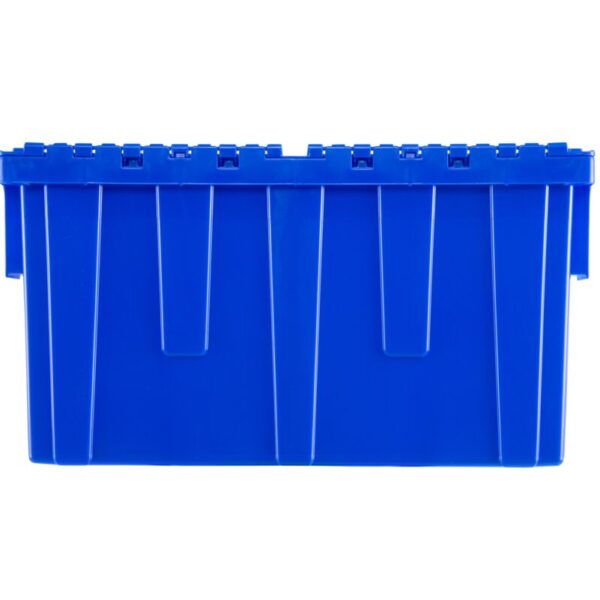

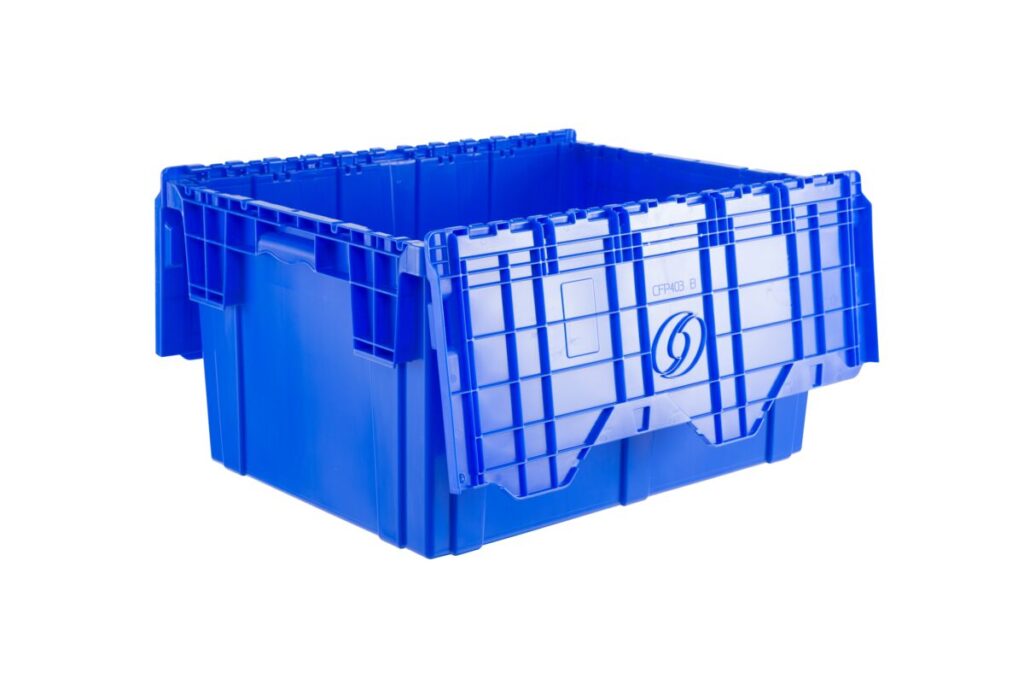

La cajade tapa adherida de 28″ x 20″ x 15″ ofrece amplia capacidad interior para todo tipo de producto en las industrias de vestido, artículos para el hogar y refacciones automotrices. El FP403 es parte de la familia de contenedores de distribución FliPak de ORBIS y es ideal para el manejo, almacenamiento y embarque de productos abultados y grandes así como para artículos de peso ligero embarcados a granel. Esta cajade plástico retornable con tapa adherida reemplaza a las cajas de cartón corrugado de embarque, para ahorros de empaque de largo plazo. Como todos los contenedores FliPak, el FP403 se estiba cuando está lleno y se anida cuando está vacío para el uso más eficiente del espacio disponible.

  • Capacidad para acomodar productos más grandes en tránsito, con amplio volumen interior y espacio libre de producto de 14.0″
  • Borde y esquinas reforzadas
  • Costillas en la tapa que se conectan con la base para agregar resisencia
  • Agarradera contorneada para comodidad en el manejo
  • Fondo texturizado para fácil transportación
  • Característica para mantener las tapas en posición vertical
  • Fondo texturizado
  • Elija estilo de fondo sólido o con orificio de drenado

Especificaciones

Outside Top Length In 27.9
Outside Top Width In 20.9
Outside Bottom Length In 25.8
Outside Bottom Width In 18.8
Inside Top Length In 26
Inside Top Width In 19
Inside Bottom Length In 25
Inside Bottom Width In 18
Total Container Height In 15.2
Prod Clearance In 14.0
Weight Lb 12
Volume Cu Ft
53 Trailer Qty 1496

Opciones

Metal Hinge

Metal hinge on FliPak totes.

Plastic Hinge

Plastic hinge on FliPak totes. Available for use in metal-free facilities.

Molded-In Reinforced Holes

Molded-in reinforced holes for standard security ties.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Cardholders

Polypropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

Container Hot Stamp

Hot Stamp identification is available for a wide variety of ORBIS totes. The original artwork must be supplied to ORBIS at the time of the order. Size, feasibility and available location of the hot stamp will vary for each container. Minimum shipment is required.

Sequential Numbering Hot Stamp

Specialty hot-stamp available with each character limited to a 1/2" height and 5 characters per line. The requirements for the area and location for sequential numbering varies for each container.

Long Side Banding Slot

Molded-in notch, on long side of tote, to accommodate banding.

Compatible Con

DFP24-402

Size (IN) : 28.6  x  21.2  x  11
