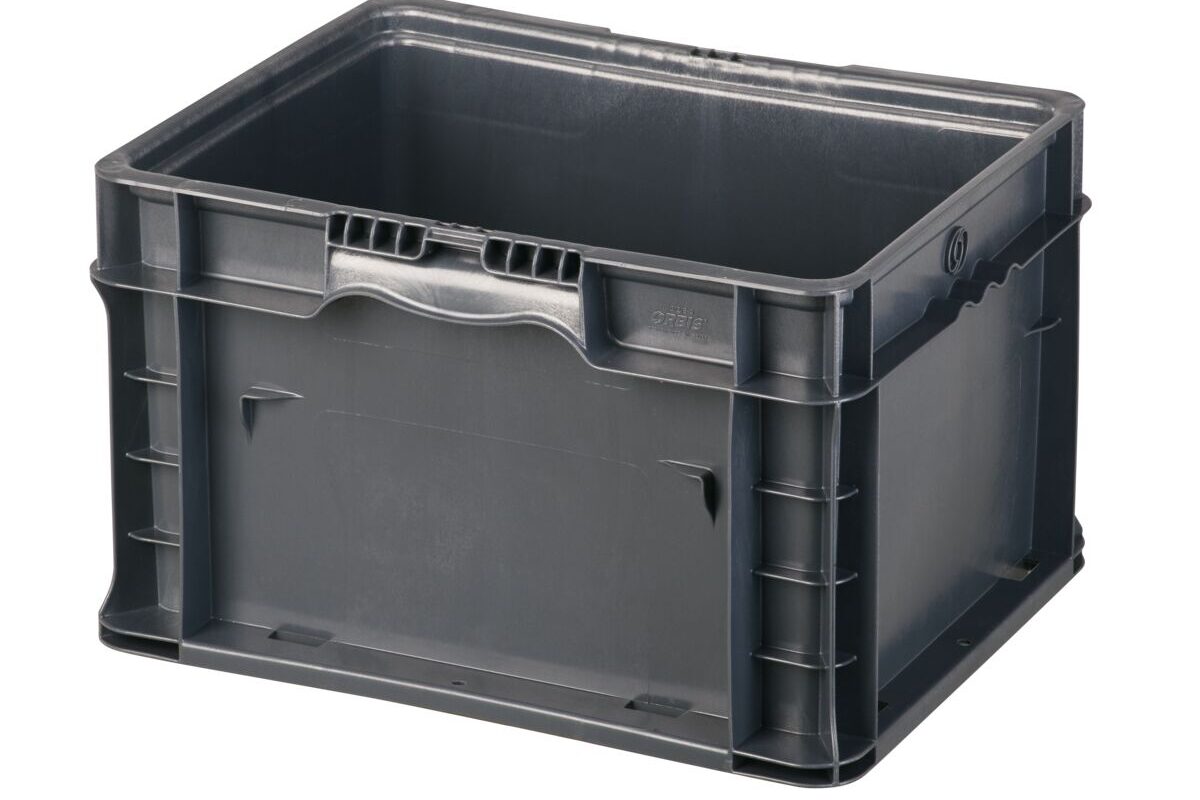

NXO1215-9

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
  • An Ocean in Mind Product An Ocean in Mind Product
Contacte a su experto de ORBIS
De el primer paso hacia una cadena de suministro y un negocio mas sustentable.
El NXO1215-9 ofrece una superficie texturizada para fácil desprendimiento de etiqueta.El sistema StakPak ofrece más de 20 contenedores modulares de pared recta con características avanzadas para optimizar su sistema de empaque retornable. El sistema de contenedor StakPak está diseñado para aplicaciones justo a tiempo donde los mismos contenedores son usados para embarque, almacenamiento y trabajo en proceso. Los StakPak son compatibles con una amplia variedad de tarimas AIAG, tapas superiores y sistemas de cinturón de seguridad. Las costillas externas de refuerzo agregan máxima resistencia de estiba. Guía continua moldeada para evitar que la suciedad y el polvo contaminen el producto. Los orificios de drenado en la guía y las agarraderas aseguran una fácil limpieza y drenado. Las paredes interiores rectas y lisas del NXO1215-9 ofrecen máximo aprovechamiento de espacio cúbico y fácil interacción con el material interior hecho a la medida.

  • Medida 12 x 15 x 9
  • Superficie texturizada en 4 lados, incluidos 2 lados adyacentes, 2 lados largos o 2 lados cortos
  • Fondo liso o reforzado
  • Agarraderas para los dedos en lados adyacentes

Especificaciones

Outside Length In 12
Outside Width In 15
Outside Height In 9.5
Inside Bottom Length In 9.5
Inside Bottom Width In 13.1
Prod Clearance St In 8.9
Prod Clearance Reinforced In 8.4
Weight Smooth Textured Lb 2.4
Weight Reinforced Lb 2.7
Containers Per Lyr (45x48 PLT) variable
53ft Trailer 50in Unit Loads 3120
Containers Per Layer 12

Opciones

Smooth Bottom

Full smooth surface available on StakPak container bottom.

Reinforced Bottom

Molded-in reinforced surface available on StakPak container bottom.

Cardholders

Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

RFID Labels

Accommodates many types of RFID labels. These totes offer several flat areas designed specifically for the precise placement of labels and tags. Multiple label styles are available to meet technical requirements.

Container Hot Stamp

Hot Stamp identification is available for a wide variety of ORBIS totes. The original artwork must be supplied to ORBIS at the time of the order. Size, feasibility and available location of the hot stamp will vary for each container. Minimum shipment is required.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Compatible Con

30 x 36-B SBRR CITS SO LP

Size (IN) : 37  x  31  x  6.8

45 x 48 BR CIISF LP

Size (IN) : 48.7  x  45.7  x  7.5

45 x 48 BR SBRR CIISF LP

Size (IN) : 48.7  x  45.7  x  7.5

45 x 48 JOURNEY

Size (IN) : 48.9  x  45.9  x  6

45 x 48 HDPT

Size (IN) : 49  x  46  x  6.1

45 x 48 SFP

Size (IN) : 48.8  x  45.8  x  5.8

45 x 48-2 MI SBRR CISS LP

Size (IN) : 49.4  x  46.4  x  7.6

45 x 48 BR MI CISF LP

Size (IN) : 48.7  x  45.7  x  6.6

45 x 48 BR SBRR CISF LP

Size (IN) : 48.7  x  45.7  x  6.6
