Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

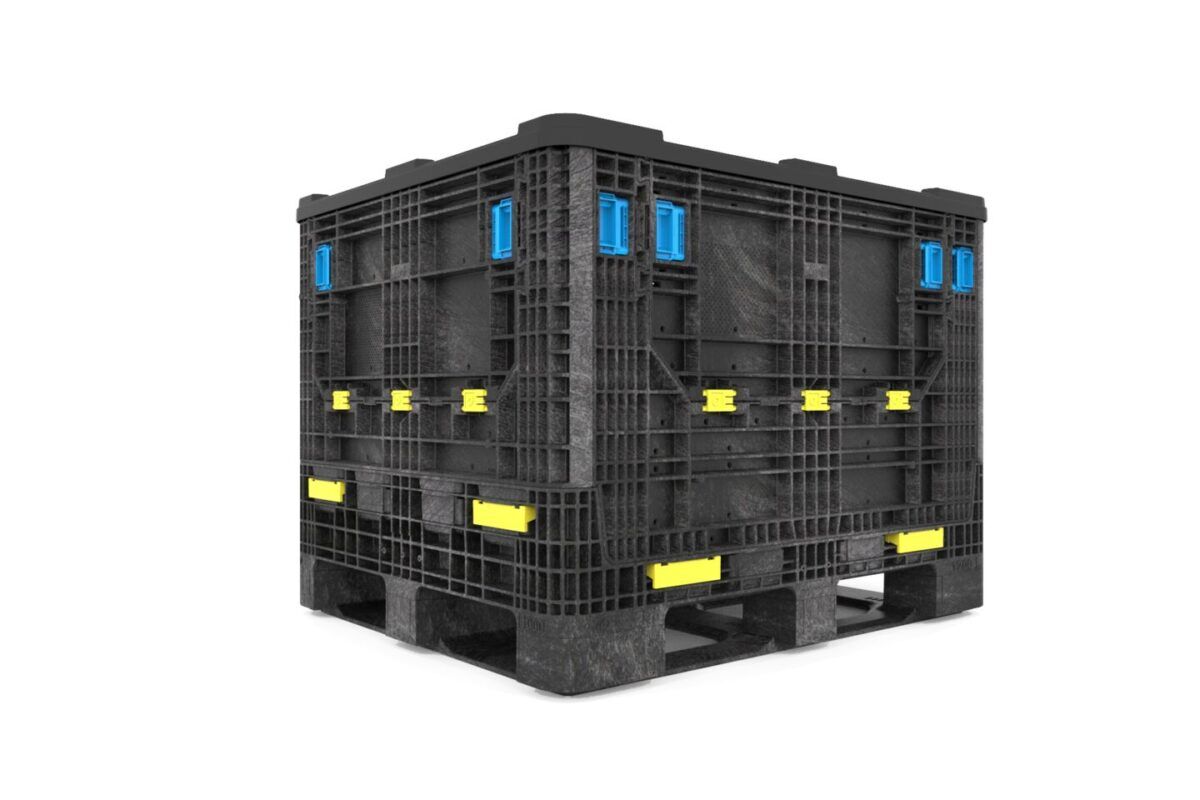

The HDB1210 GitterPak system was designed to protect and transport parts in global automotive and industrial applications. Engineered to emphasize durability, repairability, and warehouse and logistic cost savings due to collapsibility, these reusable containers provide a heavy-duty alternative to steel tubs, stillages, wood crates, and other alternative packaging systems. Combined with a collapsible, all-plastic heavy-duty container design, the HDB1210-870 provides a lower total cost of ownership, with an attractive ROI. Unlike fixed wall steel stillages, ORBIS heavy-duty GitterPak containers collapse and stack securely with each other for warehouse space savings and reduced return transportation costs during storage and return shipment. The HDB1210-980 features large access doors provide excellent interior access as well as improved ergonomics for operator safety. Combined with the multiple available door configurations and heights, the new ORBIS GitterPak provides a customizable packaging solution to suit your operations needs.

  • Reduce product damage with all-plastic construction
  • Long service life with structural-foam molded construction in high-density polyethylene
  • Holds up to 900 Kg
  • Lower total cost of ownership for an attractive ROI
  • Reduced return freight costs, with a higher ratio of collapsed bins versus non-collapsible steel bins
  • Enhanced reparability features deliver easy, on-site repair
  • Improved versatility with multiple heights (582mm, 732mm, 870mm, and 980mm); full stringer or 3 stringer bottom and 0, 1, or 2 access doors
  • Manufactured in Europe. US orders may have minimum quantity requirements and extended leadtimes


Outside Length In 47.2
Outside Width In 39.4
Outside Height In 34.3
Inside Length In 43.8
Inside Width In 35.9
Prod Clearance In 28.5
Collapsed Height In 12.5
Container Capacity Lb 1984
Weight Lb 141
Maximum Loaded Stack Static 5 High
Maximum Loaded Stack Dynamic 2 High
Door Openings Long H In 16.5
Door Openings Long W In 32.3
Door Openings Short H In 16.5
Door Openings Short W In 29.7



Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Placard Boards

Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Similar Products


Size (IN) : 47.2  x  39.4  x  38.6


Size (IN) : 47.2  x  39.4  x  28.8


Size (IN) : 47.2  x  39.4  x  22.9
