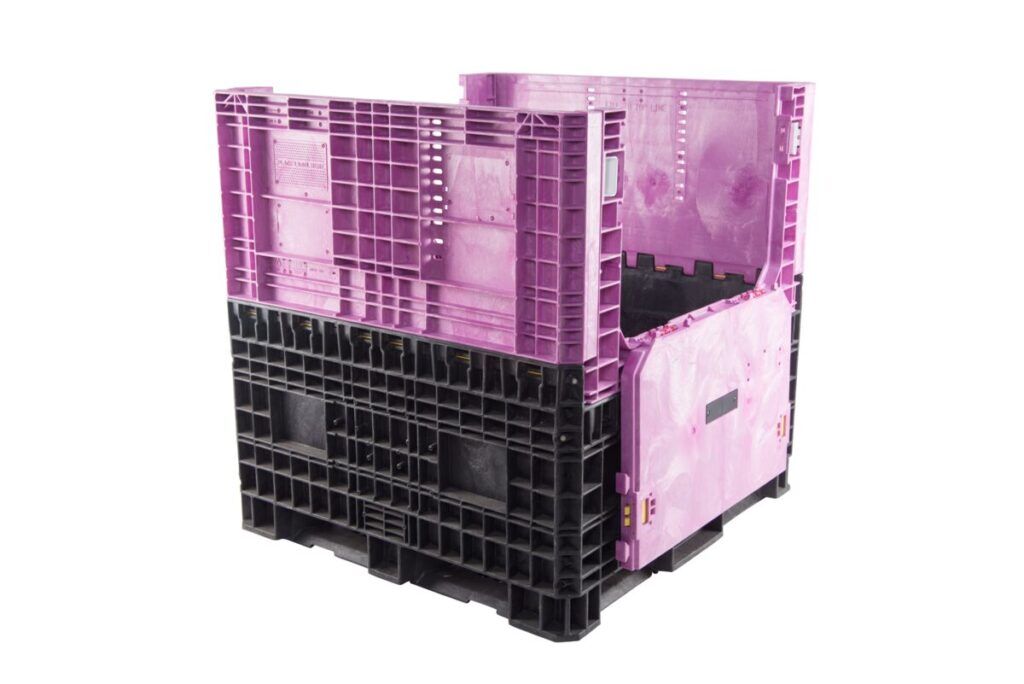

The heavy-duty BulkPak 4845 HDR Series is used extensively by the automotive industry, as it meets the specifications of the Automotive Industry Action Group (AIAG). Unitized loads can be delivered directly to the assembly line for immediate part presentation, with no unwrapping or unbanding. Bulk containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping, these bulk bins stack securely atop each other. Palletized container loads can be stacked with the BulkPak, for greater shipping efficiency. Based on the standard AIAG footprint, these bulk containers are designed and constructed to efficiently move, store and ship components. Pallet boxes offer the strength and rugged durability demanded in today’s material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by the distribution of load, handling methods, number, type of access doors, and temperatures beyond the range of 0 to 120 degrees Fahrenheit.) NOTE: Photo shown is HDR4845-42.

  • 45 x 48 x 48 footprint
  • Structural-foam molded in high-density polyethylene
  • Container capacity: 1500 lbs
  • Access Doors: 0, 2, or 4 doors (V” Shape 45″ access door and/or 45″ Wing-wall styles are available). Note: 45″ doors and/or wing walls not available on the HDR4845-25 or HDR4845-39
  • Wing-wall style doors on 45 side
  • Base: All-plastic picture frame bottom
  • Deck: Vented
  • Sidewalls: Solid
  • Popular applications: automotive, appliance, and transportation equipment


Outside Length In 48
Outside Width In 45
Outside Height In 48
Inside Length In 44.3
Inside Width In 41.3
Prod Clearance In 41.2
Collapsed Height In 27.0
Container Capacity Lb 1700
Weight Lb 192.5
Maximum Loaded Stack Static 4
Maximum Loaded Stack Dynamic 2
Return Ratio 1.8:1
Door Openings Long H In 21.8
Door Openings Long W In 33
Internal Volume Cu Ft 43.4
53ft Trailer Qty Assembled 52
53ft Trailer Qty Collapsed 104



Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Placard Boards

Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Compatible With

CHDR4845 Cover

Size (IN) : 48.9  x  45.8  x  3.7
