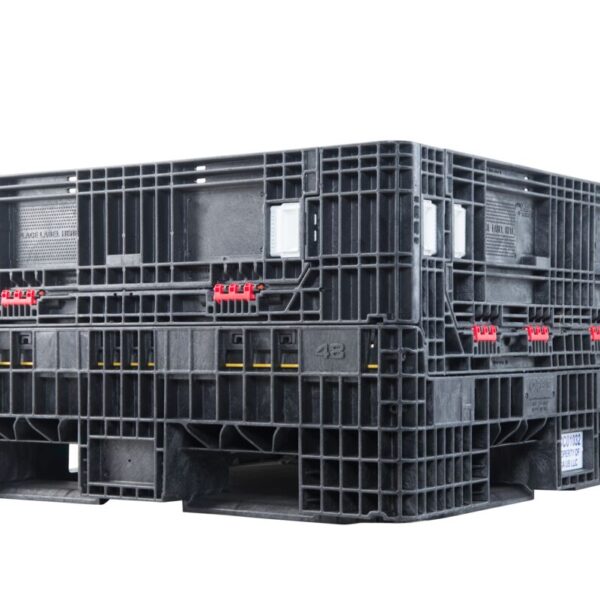

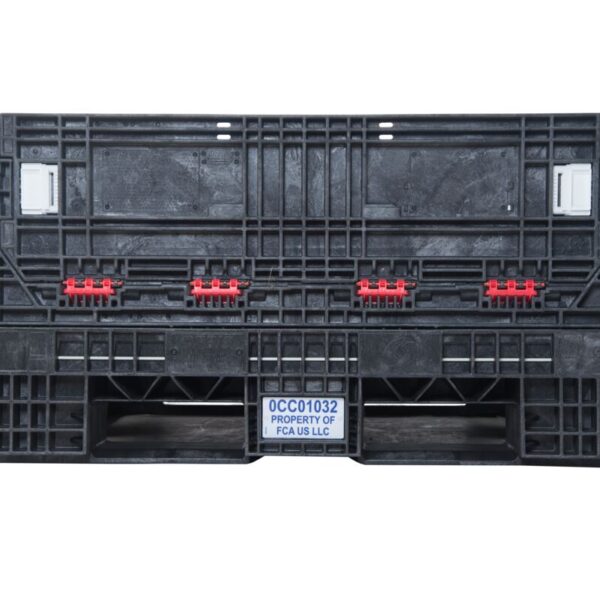

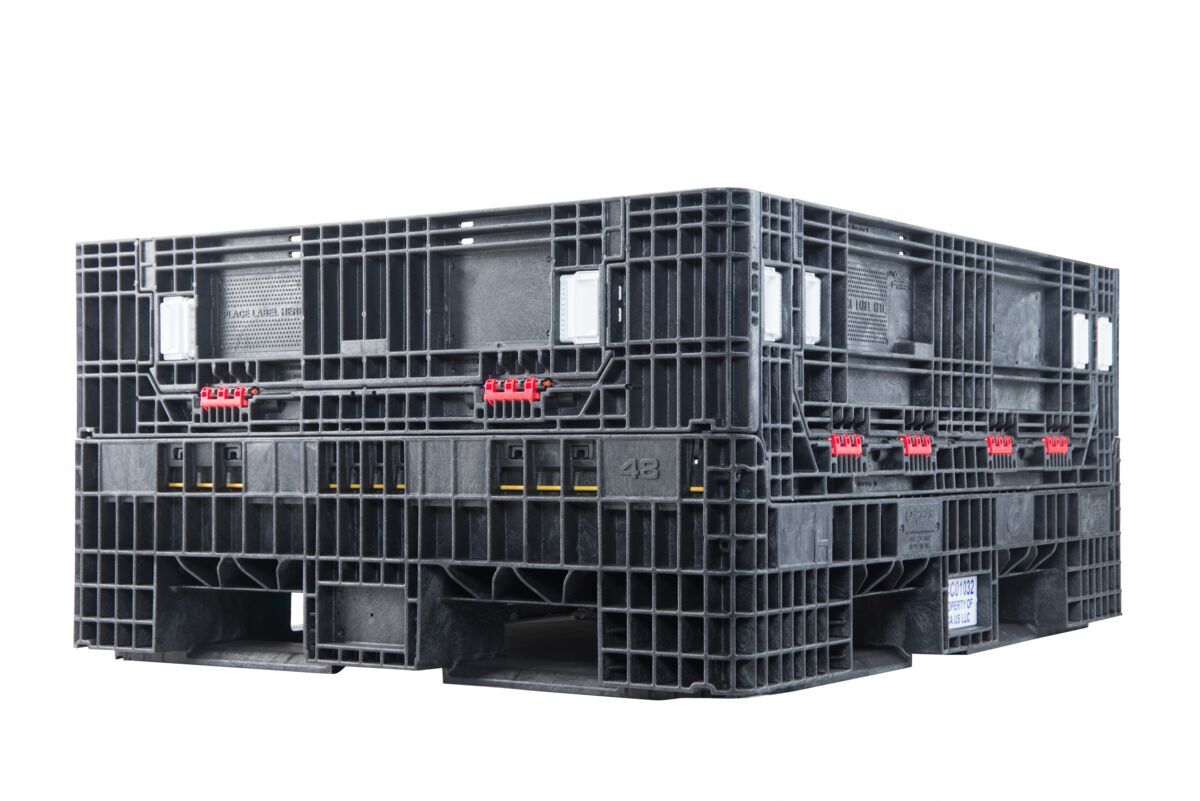

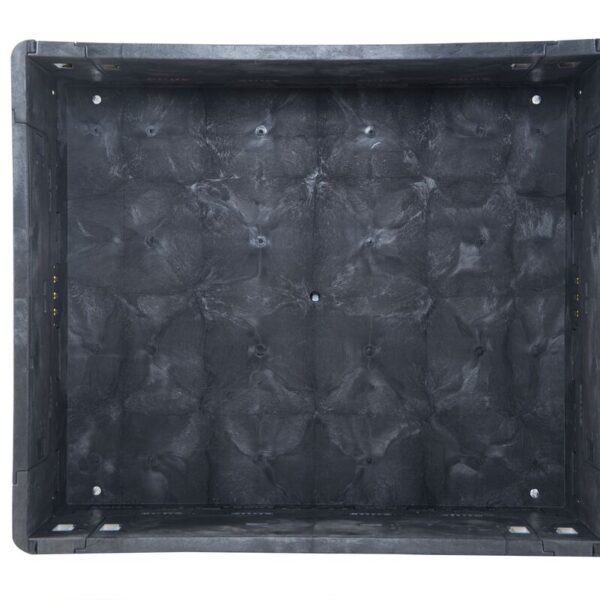

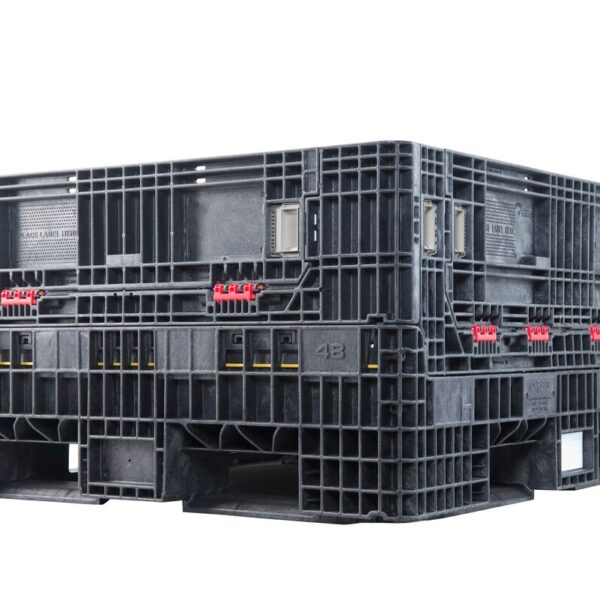

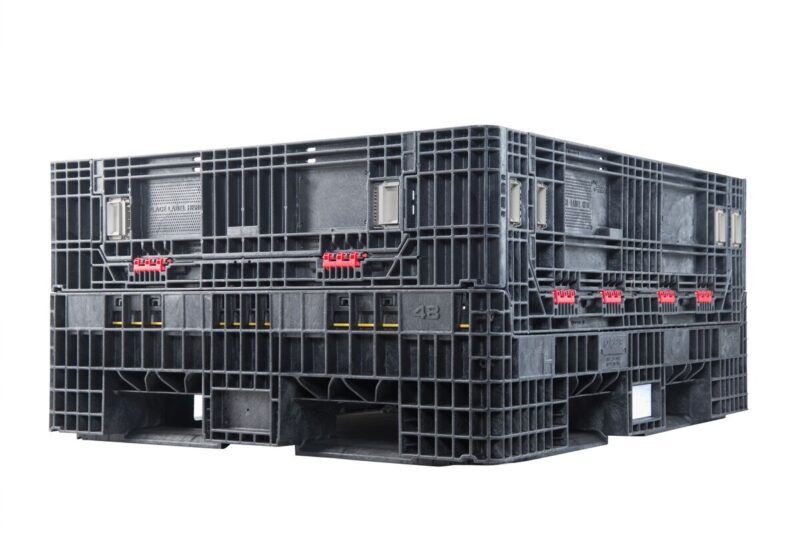

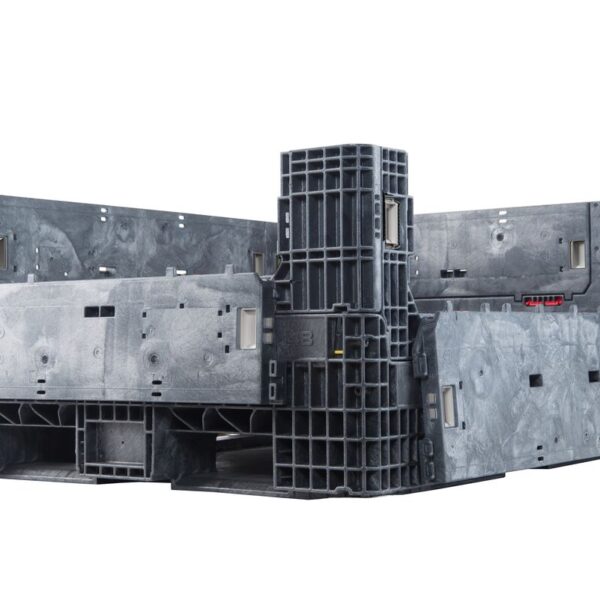

HDR5648-25 NV

Extended-length containers accommodate long and hard-to-fit components and parts. The BulkPak® 5648 HDR Series accommodates long and hard-to-fit component parts. All containers are structural-foam molded in high-density polyethylene for durability and are available in side-loading Maximus styles. Unitized loads can be delivered directly to the assembly line for immediate part presentation, with no unwrapping or unbanding. Bulk containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping these bulk bins stack securely atop each other. Palletboxes offer the strength and rugged durability demanded in todays material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by distribution of load, handling methods, number and type of access doors and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

  • 56" x 48" x 25" footprint
  • Fixed Walls
  • Areas on all four sides for identification options
  • Container capacity: 2,000 lbs
  • Access doors: 0, 1 or 2 doors on 48" side and 2 standard doors on 56" side
  • Deck: Solid with drain holes
  • Sidewalls: Solid

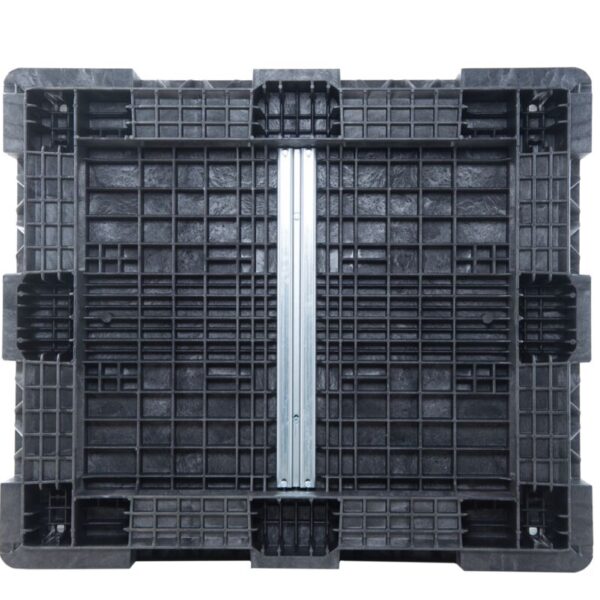

  • Base: All-plastic picture frame bottom with rounded legs for easy fork truck handling and reduced risk of “short forking”
  • Popular applications: Automotive, appliance and transportation equipment

  Download Sales Sheet
  HDR5648-25 NV
Outside Top Dimensions Length56.6"
Outside Top Dimensions Width48.0"
Outside Top Dimensions Height25.6"
Inside Top Dimensions Length53.3"
Inside Top Dimensions Width44.8"
Product Clearance18.0"
Collapsed Height13.6"
Container Capacity2,000 lbs
Weight171 lbs
Internal Volume24.5 ft3
Maximum Loaded Stack Static6 high
Maximum Loaded Stack Dynamic4 high
Return Ratio2:1
Access Door Openings Height Long Side12.2"
Access Door Openings Height Short Side9.0"
Access Door Openings Width Long Side44.3"
Access Door Openings Width Short Side32.4"
Fork Openings Height Long Side3.5"
Fork Openings Height Short Side3.5"
Fork Openings Width Long Side11.8"
Fork Openings Width Short Side11.8"
40 Ft Container Quantities Without Covers Collapsed72
40 Ft Container Quantities Without Covers Assembled45
Truckload Quantities 53 Ft Without Covers Collapsed176
Truckload Quantities 53 Ft Without Covers Assembled88
HDR5648-25 NV
Outside Top Dimensions Length56.6"
Outside Top Dimensions Width48.0"
Outside Top Dimensions Height25.6"
Inside Top Dimensions Length53.3"
Inside Top Dimensions Width44.8"
Product Clearance18.0"
Collapsed Height13.6"
Container Capacity2,000 lbs
Weight171 lbs
Internal Volume24.5 ft3
Maximum Loaded Stack Static6 high
Maximum Loaded Stack Dynamic4 high
Return Ratio2:1
Access Door Openings Height Long Side12.2"
Access Door Openings Height Short Side9.0"
Access Door Openings Width Long Side44.3"
Access Door Openings Width Short Side32.4"
Fork Openings Height Long Side3.5"
Fork Openings Height Short Side3.5"
Fork Openings Width Long Side11.8"
Fork Openings Width Short Side11.8"
40 Ft Container Quantities Without Covers Collapsed72
40 Ft Container Quantities Without Covers Assembled45
Truckload Quantities 53 Ft Without Covers Collapsed176
Truckload Quantities 53 Ft Without Covers Assembled88

All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by distribution of load, handling methods, number and type of access doors and temperature beyond the range of 0° F to 120° F.
