40 x 48 ODYSSEY HD CLOSED DECK

The 40 x 48 ODYSSEY

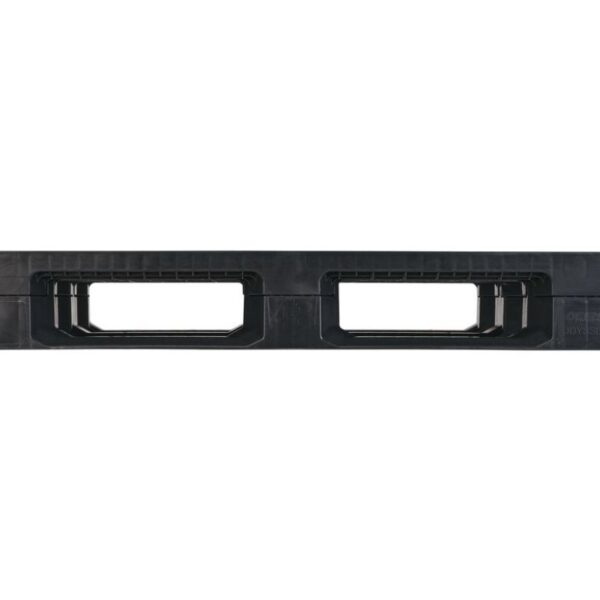

Side view of the 40 x 48 ODYSSEY HD CLOSED DECK black plastic pallet, featuring two rectangular openings in the center.

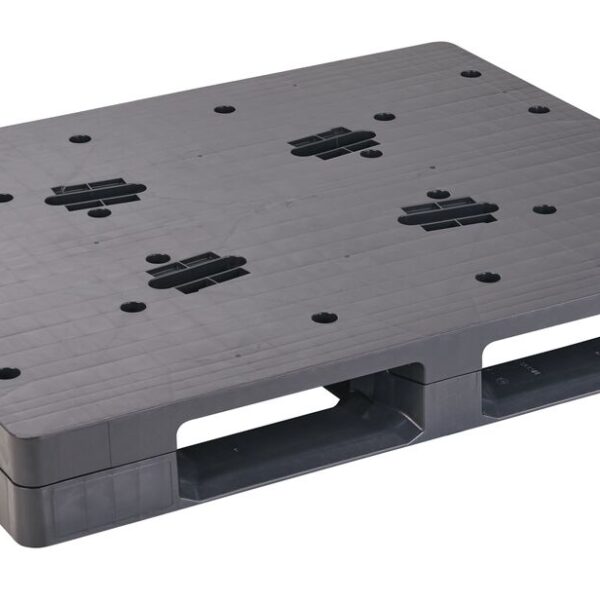

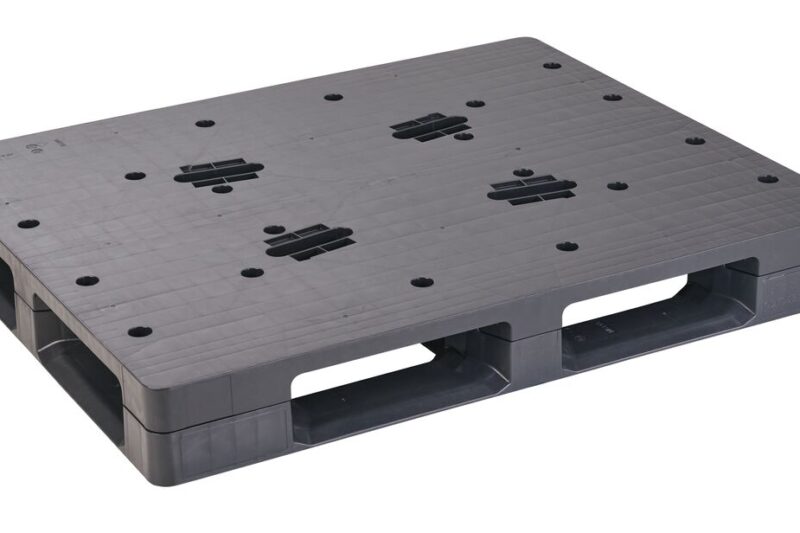

The 40 x 48 ODYSSEY HD CLOSED DECK black plastic pallet showcases a rectangular design with dimensions of 40 x 48 and includes two large side openings.
Top view of the 40 x 48 ODYSSEY HD CLOSED DECK black plastic pallet, showcasing a grid pattern with circular cutouts.
The 40 x 48 ODYSSEY HD CLOSED DECK, a black plastic pallet, showcases a grid pattern and various cut-out slots, ensuring robust reliability.
The 40 x 48 ODYSSEY
Odyssey Rackable Pallet Features - ORBIS Video
Side view of the 40 x 48 ODYSSEY HD CLOSED DECK black plastic pallet, featuring two rectangular openings in the center.
The 40 x 48 ODYSSEY HD CLOSED DECK black plastic pallet showcases a rectangular design with dimensions of 40 x 48 and includes two large side openings.
Top view of the 40 x 48 ODYSSEY HD CLOSED DECK black plastic pallet, showcasing a grid pattern with circular cutouts.
The 40 x 48 ODYSSEY HD CLOSED DECK, a black plastic pallet, showcases a grid pattern and various cut-out slots, ensuring robust reliability.
Can be made with Recycled Plastics

Description

The new 40 x 48 Odyssey HD Closed Deck Pallet is a robust solution that supports heavy loads and provides load stability with unique design features, including optional steel reinforcements and permanent molded-in frictional elements. The Odyssey is optimized for a wide variety of applications and markets, including food processing, cold storage, dry goods, agriculture, raw materials, and finished goods storage. Rackable plastic pallets optimize storage, reduce product damage that can occur from wood pallets, and offer dimensional consistency optimized for automated equipment. The truckload quantity for the Odyssey Pallet with lip is 510. ORBIS has now validated that its 40×48-inch Odyssey plastic pallet has approximately 36 times the life span of a 40×48-inch whitewood stringer pallet, according to a recent study. Researchers from the Virginia Tech Center for Packaging and Unit Load Design used the center’s FasTrack life-cycle analysis to compare relative durability. In testing, the Odyssey plastic pallet completed the sequence of 400 cycles without failure, while the wood pallet’s average failure was after 11 cycles. The FasTrack life-cycle analysis simulates the rough handling of palletized unit loads, using a multi-step handling sequence.

Check out our material handling and automation interface information.

  • Long service life – travels 400+ trips in a typical supply chain
  • Available in multiple styles to fit in any application
  • Robust and highly resistant to impact from equipment, ideal for rugged applications
  • Select pallets made of recycled content and all are fully recyclable at end of life
  • 40 x 48 top caps are available to create shipping loads. Please ask your ORBIS sales representative about compatibility
  • Hygienic design for easy clean-ability
  • Comfortable hand holds for easy manual handling
  • Permanent, molded-in frictional elements minimize load shifting and do not damage product packaging
  • Compatible with many types of material handling and autonomous equipment
  • Optional steel reinforcements offered in the 40″, 48th or both directions
  • Full Picture Frame bottom or 3-runner style available
  • Minimize load shifting with optional molded-in frictional elements
  • Keep plants and equipment clean with hygienic design options like flow-through deck
  • * Please add 0.5″ to pallet height if using optional discontinuous lip version. Total pallet height with lip is 6.5″.
  • ** Truckload quantity for pallet with lip is 510.

Additional information

Weight 52 lbs
Dimensions 48 × 40 × 6 in
Outside Length (in.)

48
Outside Width (in.)

40
Height (in.)

6
Weight (lb.)

52
Static Load Capacity (lb.)

30000
Dynamic Load Capacity (lb.)

6000
Edge Rack Capacity (lb.)

2800
Supported Rack Capacity (lb.)

6000
Truckload Qty 53 ft. Trailer

540
Download Product Information*

*The information contained herein is subject to change without notice. Statements regarding the application of the product(s) are based on general industry knowledge and are non-binding; it is the customer’s responsibility to validate that a particular product is suitable for use in a particular application. The information contained herein does not expand or otherwise modify ORBIS’ terms and conditions of sale, including, but not limited to, the warranty expressed therein. ORBIS hereby disclaims: (1) all liability with respect to the accuracy, reliability, or completeness of the information contained herein; and (2) all warranties, express or implied, with respect to the information contained herein, including, without limitation, with respect to the suitability of the products for any particular purpose or application.

Options

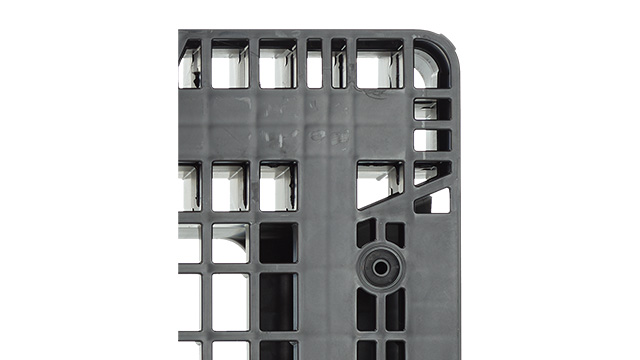

20 Frictional Elements
Permanent, molded-in elements to prevent load shifting.
Molded-In Logo
Molded-In Logo identification is a type of permanent identification that is molded into product. Original artwork must be supplied to ORBIS at the time of the order. Availability, requirement, and location for the molded-in identification can vary for each product.
Pallet Hot Stamp
Pallet identification is easy with ORBIS' Hot Stamp option. It utilizes .5” block capital letters in a predefined area on the pallet or top cap. Availability, requirements, and location for the hot stamp can vary for each pallet.
Track and Trace
Offers ability to be tracked with GPS, RFID, BLE, bar code scanning or a hybrid solutions of these technologies.
1/2" Perimeter Lip
Discontinuious molded-in lip on that adds 0.5" to pallet height. Holds loads in place. Lip styles vary by pallet.

Compatible Products

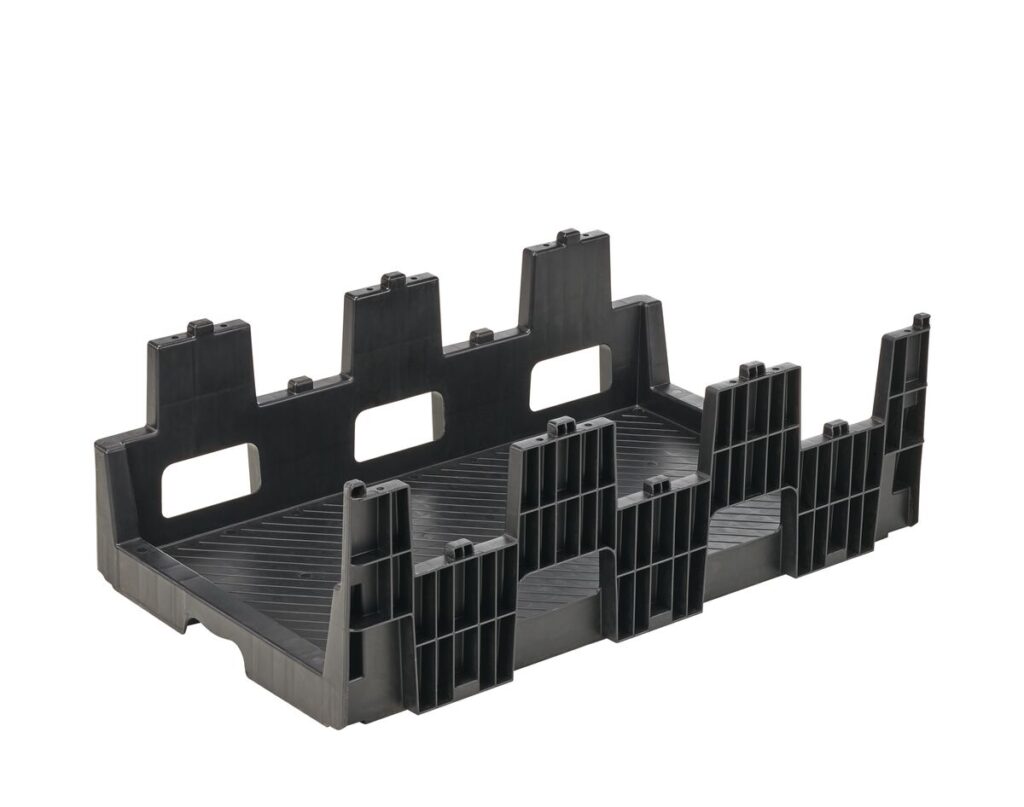

40 x 24 XpressBulk SN Tray

Size (IN): 39.37 × 39.37 × 13.1 in

Related Products

A 45 x 48 BR CIISF LP on a white background.

40 x 48 HDSC 3-Drum

Size (IN): 48 × 40 × 5.6 in
A black and yellow plastic pallet on a white background.

40 x 48 BulkPal with 3.0″ connectors

Size (IN): 48 × 40 × 5.5 in
A black plastic pallet on a white background.

40 x 48 BulkPal with 2.0″ connectors

Size (IN): 48 × 40 × 4.5 in
A black plastic pallet stands on a white background.

40 x 40 DY

Size (IN): 40 × 40 × 5 in
A black plastic pallet with holes.

37 x 37 BEV FG

Size (IN): 37 × 37 × 6 in
A grey plastic pallet on a white background.

32 X 38 HD LP

Size (IN): 38 × 32 × 6.5 in
A 30 x 32 CIISF plastic pallet on a white background.

30 x 32 CIISF

Size (IN): 32.25 × 30.25 × 6.6 in
A 40 x 48 RII CIISC PC FRM on a white background.

40 x 48 RII PC FRM

Size (IN): 48 × 40 × 6 in
A grey plastic pallet on a white background.

40 x 48 STACK’R HD STR SOLID DECK

Size (IN): 48 × 40 × 5.9 in
A grey plastic pallet on a white background.

40 x 48 STACK’R MD STR SOLID DECK

Size (IN): 48 × 40 × 5.9 in
