GP4048-34

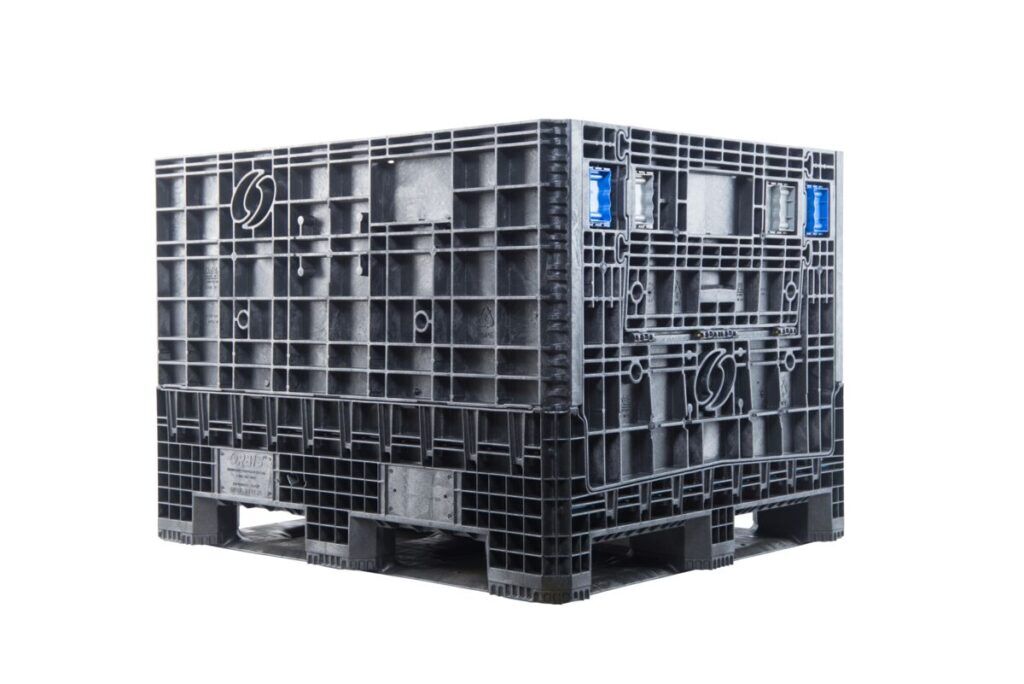

BulkPak® Containers 40x48 GP4048-34 image

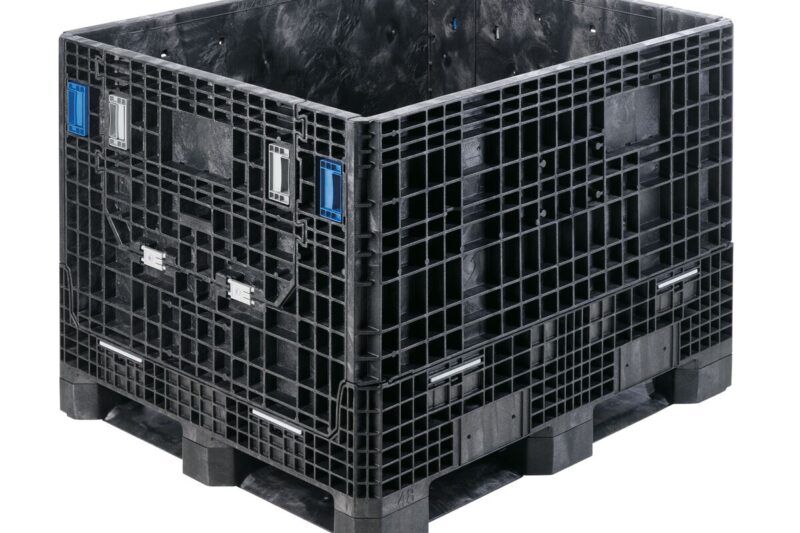

BulkPak® Containers 40x48 GP4048-34 image

The medium-duty BulkPak® 4048 GP Series was designed for a wide variety of product sizes, shapes and weights. These bulk containers allow more parts to be handled, stored and shipped...with fewer containers and in fewer trips. The advanced design results in a consistent tare weight that improves inventory and shipping efficiencies. Containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping these bulk bins stack securely atop each other when full. Palletboxes offer the strength and rugged durability demanded in todays material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected distribution of load, handling methods, number and type of access doors and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

  • 40" x 48" x 34" footprint
  • Structural-foam molded sidewalls and structural-channel molded base
  • High-density polyethylene
  • Container capacity: 2,000 lbs
  • All-plastic construction eliminates risk of rust
  • Self-standing sidewall for safe and efficient assembly and collapse
  • Access Doors: 0, 1 or 2 doors on the 40” side (Door configurations vary by model)
  • Base: All-plastic picture frame bottom or footcaps
  • Deck: Solid or ventilated
  • Sidewalls: Solid or ventilated
  • Popular applications: Produce, caps/closures, plastic/rubber parts

Load more videos
  Download Sales Sheet
  GP4048-34
Outside Top Dimensions Length48.0"
Outside Top Dimensions Width40.0"
Outside Top Dimensions Height34.0"
Inside Top Dimensions Length45.0"
Inside Top Dimensions Width36.5"
Product Clearance27.7"
Collapsed Height13.7"
Container Capacity2,000 lbs
Weight137 lbs
Internal Volume27.9 ft3
Maximum Loaded Stack Static6 high
Maximum Loaded Stack Dynamic3 high
Return Ratio2.56:1
Access Door Openings Height Short Side15.0"
Access Door Openings Width Short Side24.0"
Fork Openings Height Long Side3.3"
Fork Openings Height Short Side3.3"
Fork Openings Width Long Side11.8"
Fork Openings Width Short Side11.8"
40 Ft Container Quantities Without Covers Collapsed147
40 Ft Container Quantities Without Covers Assembled63
Truckload Quantities 53 Ft Without Covers Collapsed240
Truckload Quantities 53 Ft Without Covers Assembled90
GP4048-34
Outside Top Dimensions Length48.0"
Outside Top Dimensions Width40.0"
Outside Top Dimensions Height34.0"
Inside Top Dimensions Length45.0"
Inside Top Dimensions Width36.5"
Product Clearance27.7"
Collapsed Height13.7"
Container Capacity2,000 lbs
Weight137 lbs
Internal Volume27.9 ft3
Maximum Loaded Stack Static6 high
Maximum Loaded Stack Dynamic3 high
Return Ratio2.56:1
Access Door Openings Height Short Side15.0"
Access Door Openings Width Short Side24.0"
Fork Openings Height Long Side3.3"
Fork Openings Height Short Side3.3"
Fork Openings Width Long Side11.8"
Fork Openings Width Short Side11.8"
40 Ft Container Quantities Without Covers Collapsed147
40 Ft Container Quantities Without Covers Assembled63
Truckload Quantities 53 Ft Without Covers Collapsed240
Truckload Quantities 53 Ft Without Covers Assembled90

All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by distribution of load, handling methods, number and type of access doors and temperature beyond the range of 0° F to 120° F.
