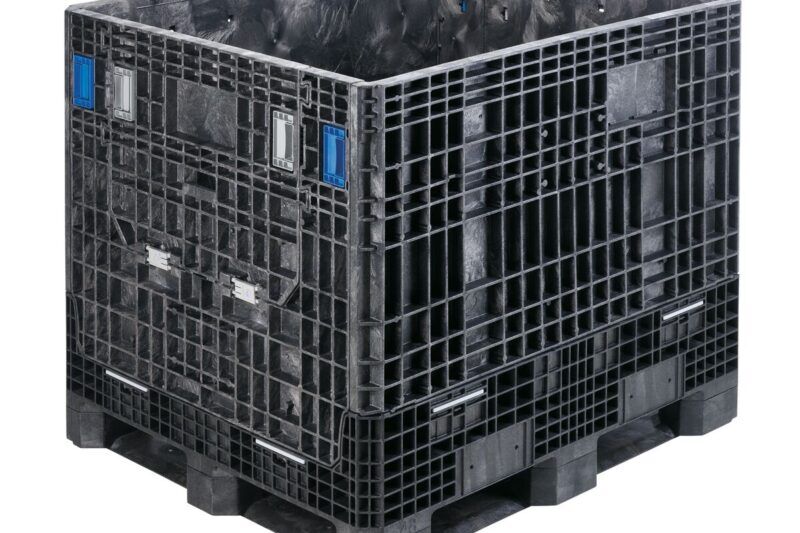

GP4048-39
The medium-duty BulkPak 4048 GP Series was designed for a wide variety of product sizes, shapes, and weights. These bulk containers allow more parts to be handled, stored, and shipped…with fewer containers and in fewer trips. The advanced design results in a consistent tare weight that improves inventory and shipping efficiencies. Containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping, these bulk bins stack securely atop each other when full. Pallet boxes offer the strength and rugged durability demanded in today’s material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by the distribution of load, handling methods, number, type of access doors, and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)
- 40 x 48 x 39 footprint
- Structural-foam molded sidewalls and structural-channel molded base
- High-density polyethylene
- Container capacity: 2,000 lbs
- All-plastic construction eliminates the risk of rust
- Self-standing sidewall for safe and efficient assembly and collapse
- 2 access doors on 40” side
- Base: All-plastic picture frame bottom
- Deck: Solid or ventilated
- Sidewalls: Solid
- Popular applications: Produce, caps/closures, plastic/rubber parts
Specifications
| Outside Length In | 48 |
| Outside Width In | 40 |
| Outside Height In | 39.1 |
| Inside Length In | 45 |
| Inside Width In | 37 |
| Prod Clearance In | 32.7 |
| Collapsed Height In | 14.1 |
| Container Capacity Lb | 2000 |
| Weight Lb | 159.2 |
| Internal Volume Cu Ft | 31.5 |
| Maximum Loaded Stack Static | 5 High |
| Maximum Loaded Stack Dynamic | 2 High |
| Return Ratio | 4:01 |
| 53ft Trailer Qty Assembled | 60 |
| 53ft Trailer Qty Collapsed | 240 |
Cardholders
Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.
ID Plates
Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.
Label Placards
Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
Placard Boards
Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
