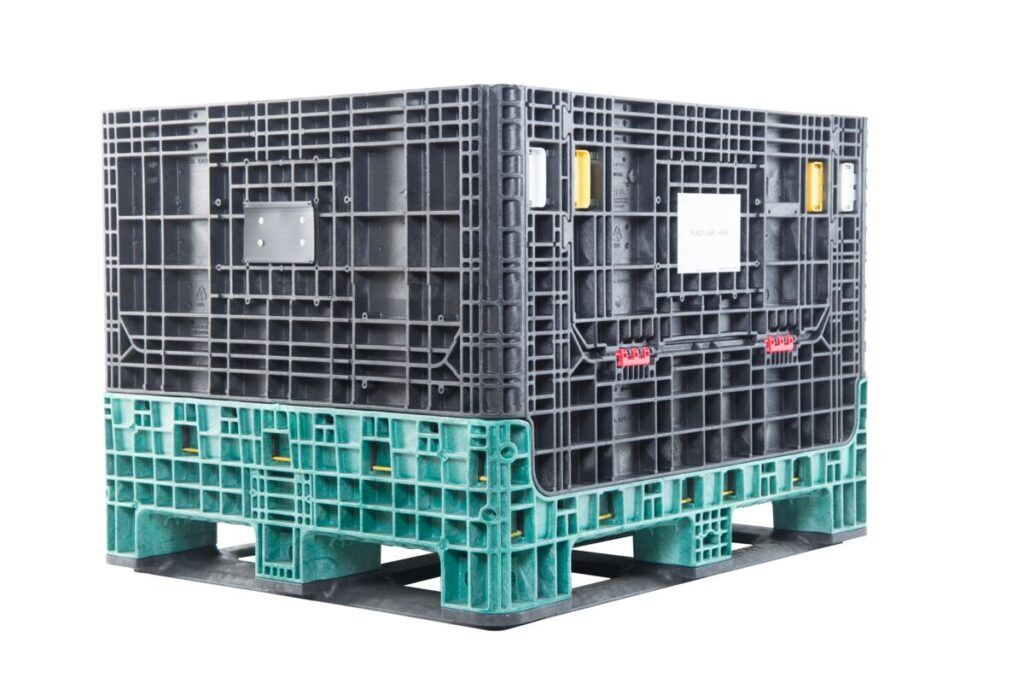

HDR4048-34

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
  • An Ocean in Mind Product An Ocean in Mind Product
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

The heavy-duty BulkPak 4048 HDR series was designed for rugged applications. These reusable containers are made of tough, durable high-density polyethylene for long-life performance under the harshest conditions and provide excellent product protection. Bulk containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping, these bulk bins stack securely atop each other. Large access door for interior access. Pallet boxes offer the strength and rugged durability demanded in today’s material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by the distribution of load, handling methods, number, type of access doors, and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

  • 40 x 48 x 34 footprint
  • Structural-foam molded in high-density polyethylene
  • Container capacity: 2,000 lbs
  • Access Doors: 0 doors or 2 doors on the long side
  • Base: Full plastic stringer with cross straps
  • Deck: Solid deck
  • Sidewalls: Solid
  • Popular applications: automotive components, bearings, hardware, industrial equipment, metal parts, plastics and rubber parts, resin, powder, and tools

Specifications

Outside Length In 47.2
Outside Width In 39.4
Outside Height In 34.3
Inside Length In 43.8
Inside Width In 36
Prod Clearance In 27.6
Collapsed Height In 13.5
Container Capacity Lb 2000
Weight Lb 158.3
Maximum Loaded Stack Static 6 High
Maximum Loaded Stack Dynamic 3 High
Return Ratio 2.5:1
Internal Volume Cu Ft 25.2
53ft Trailer Qty Assembled 90
53ft Trailer Qty Collapsed 240

Options

Cardholders

Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Placard Boards

Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Compatible With

CHDR4048-2434

Size (IN) : 48.1  x  40.2  x  2.2

Similar Products

GP4048-34-2372

Size (IN) : 48  x  40  x  34.1

GP4048-39-2373

Size (IN) : 48  x  40  x  39.1

HDMX4048-46-2376

Size (IN) : 48  x  40  x  46

HDR4048-25-2378

Size (IN) : 47.2  x  39.4  x  25

HDR4048-39-2380

Size (IN) : 47.2  x  39.4  x  39.4

HDR4048-50-2381

Size (IN) : 47.2  x  39.4  x  49.9
