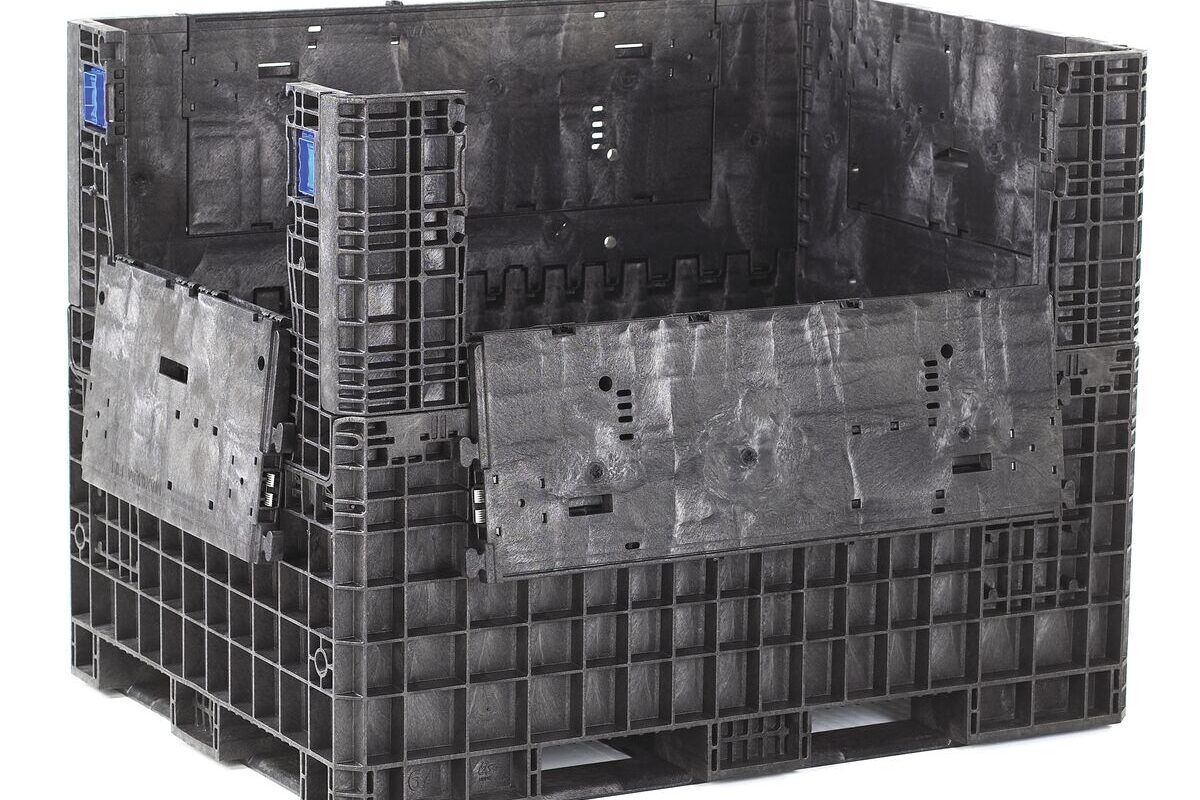

Extended-length containers accommodate long and hard-to-fit components and parts. The BulkPak 6248 HDR Series accommodates long and hard-to-fit component parts. All containers are structural-foam molded in high-density polyethylene for durability and are available in side-loading Maximus styles. Unitized loads can be delivered directly to the assembly line for immediate part presentation, with no unwrapping or unbanding. Bulk containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping, these bulk bins stack securely atop each other. Pallet boxes offer the strength and rugged durability demanded in today’s material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by the distribution of load, handling methods, number, type of access doors, and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

  • 62 x 48 x 50 footprint
  • Unique footprint optimizes a standard 53 trailer for greater freight efficiencies than competitive bulk bins
  • Areas on all four sides for identification options
  • Container capacity: 1500 lbs
  • 0, 2 or 4 doors on 48″ side
  • Deck: Vented
  • Sidewalls: Solid
  • Base: All-plastic picture frame bottom with rounded legs for easy fork truck handling and reduced risk of “short forking”
  • Popular applications: Automotive, appliance, and transportation equipment


Outside Length In 62.5
Outside Width In 48.3
Outside Height In 50
Inside Length In 59.1
Inside Width In 44.9
Prod Clearance In 43.3
Collapsed Height In 28.8
Container Capacity Lb 1500
Weight Lb 273.8
Maximum Loaded Stack Static 4 High
Maximum Loaded Stack Dynamic 2 High
Return Ratio 1.7:1
Door Openings Long H In 16
Door Openings Long W In 45.4
Door Openings Short H In 16
Door Openings Short W In 29.4
Internal Volume Gal 66.8
53ft Trailer Qty Assembled 40
53ft Trailer Qty Collapsed 60



Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Placard Boards

Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Similar Products


Size (IN) : 62.5  x  48.3  x  25


Size (IN) : 62.5  x  48.3  x  34
