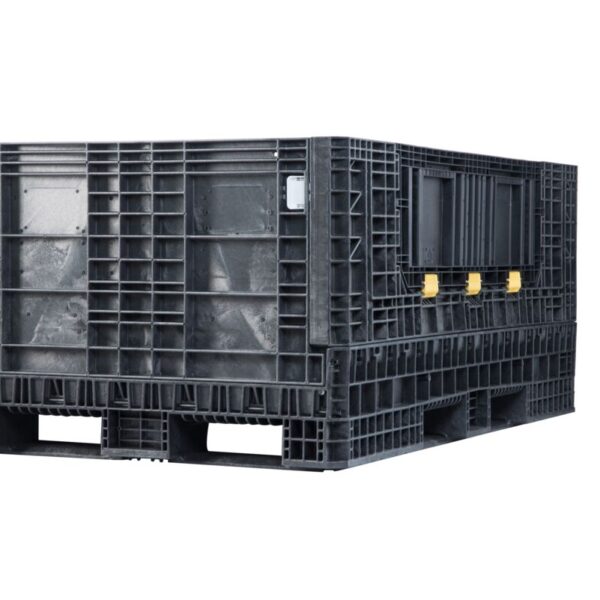

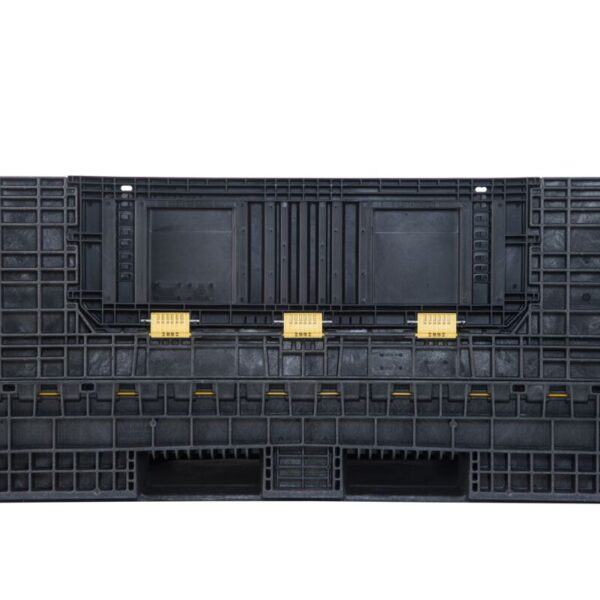

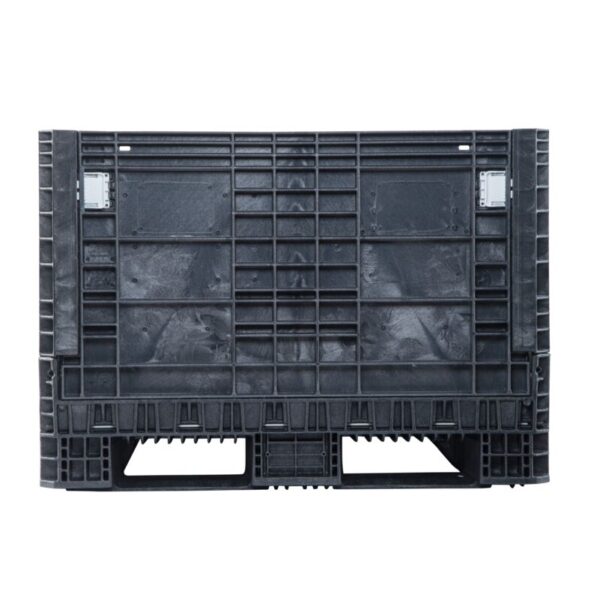

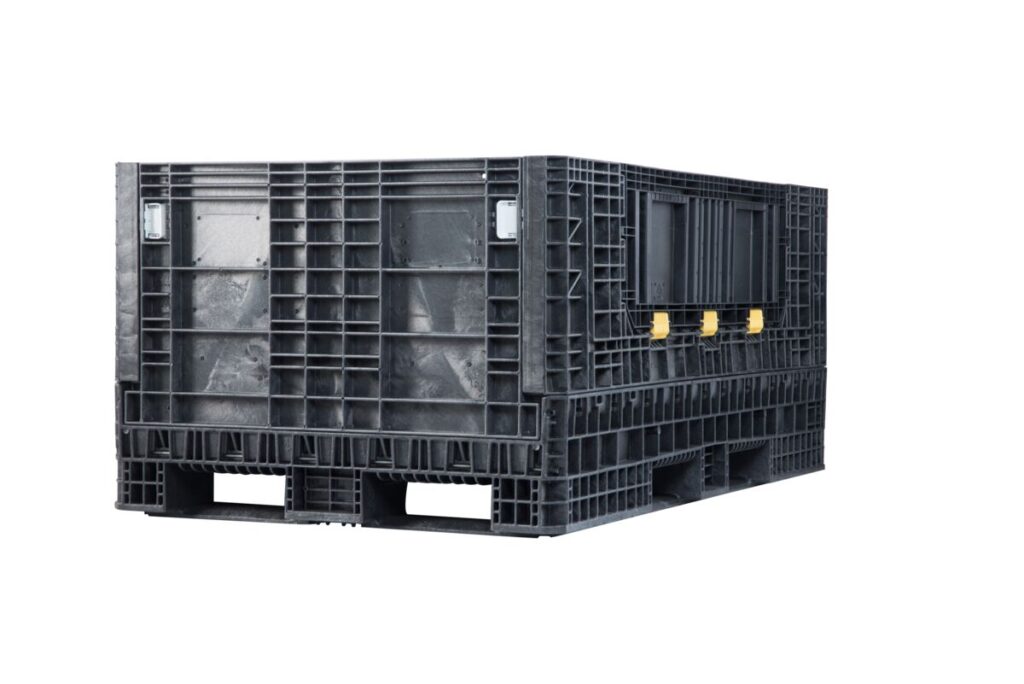

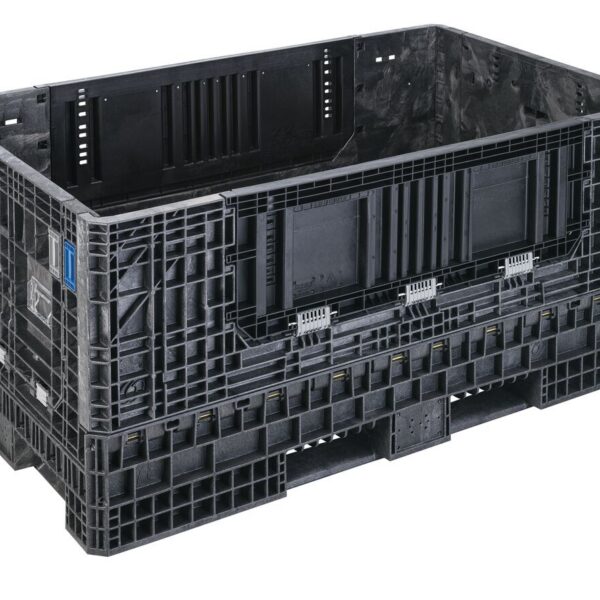

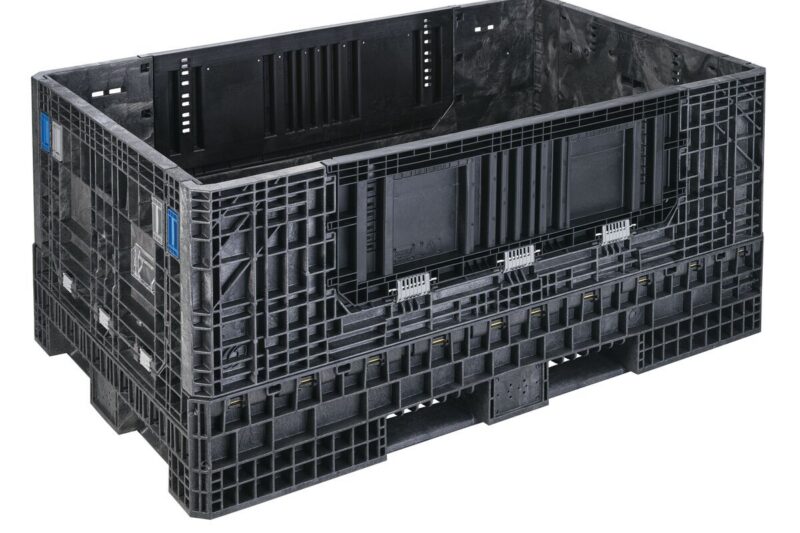

HDR7848-34
Extended-length containers accommodate long and hard-to-fit components and parts. The BulkPak 7848 HDR Series accommodates long and hard-to-fit component parts. All containers are structural foam molded in high-density polyethylene for durability and are available in side-loading Maximus styles. Unitized loads can be delivered directly to the assembly line for immediate part presentation, with no unwrapping or unbanding. Bulk containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping, these bulk bins stack securely atop each other. Pallet boxes offer the strength and rugged durability demanded in today’s material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by the distribution of load, handling methods, number, type of access doors, and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)
- 78 x 48 x 34 footprint
- Areas on all four sides for identification options
- Container capacity: 1500 lbs
- Access doors: 0, 2 or 4 doors

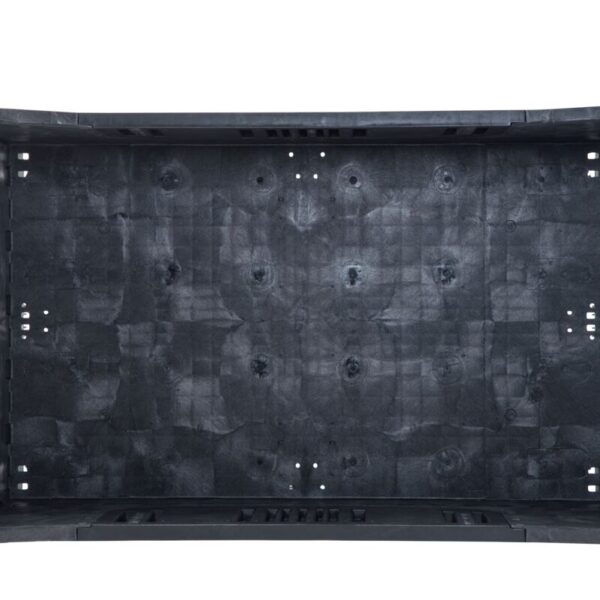

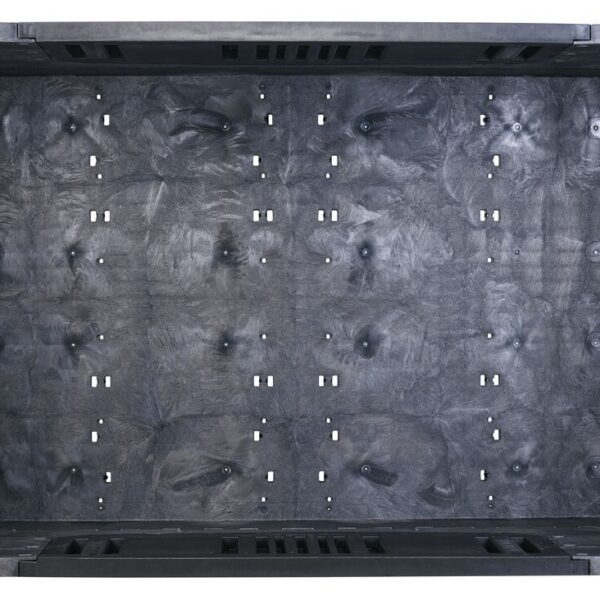

- Deck: Solid deck with drain holes

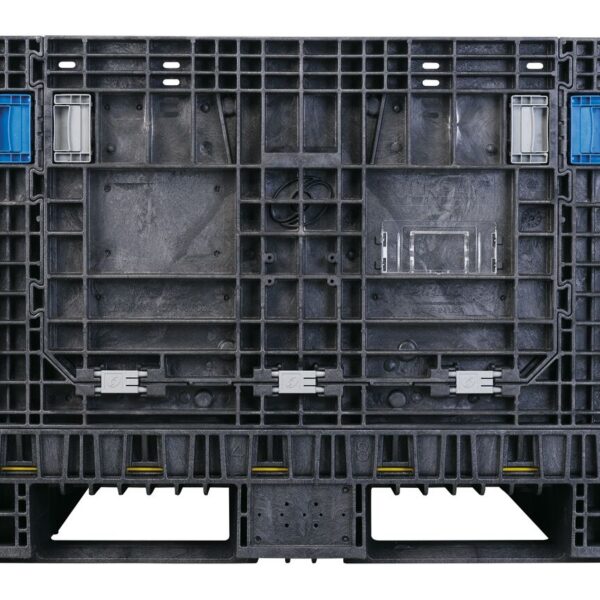

- Sidewalls: Solid
- Base: All-plastic picture frame bottom with rounded legs for easy fork truck handling and reduced risk of “short forking”
- Articulated door hinge allows doors to stay flat when open
- Popular applications: Automotive, appliance, and transportation equipment
Specifications
| Outside Length In | 77.6 |
| Outside Width In | 48.5 |
| Outside Height In | 34 |
| Inside Length In | 74.1 |
| Inside Width In | 44.5 |
| Prod Clearance In | 26.7 |
| Collapsed Height In | 13 |
| Container Capacity Lb | 1500 |
| Weight Lb | 234 |
| Maximum Loaded Stack Static | 4 High |
| Maximum Loaded Stack Dynamic | 3 High |
| Return Ratio | 2.6:1 |
| Door Openings Short H In | 15.8 |
| Door Openings Short W In | 33 |
| 53ft Trailer Qty Assembled | 48 |
| 53ft Trailer Qty Collapsed | 128 |
Cardholders
Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.
ID Plates
Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.
Label Placards
Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
Placard Boards
Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
