OPTEBULK 1200 x 1000 x 1302

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

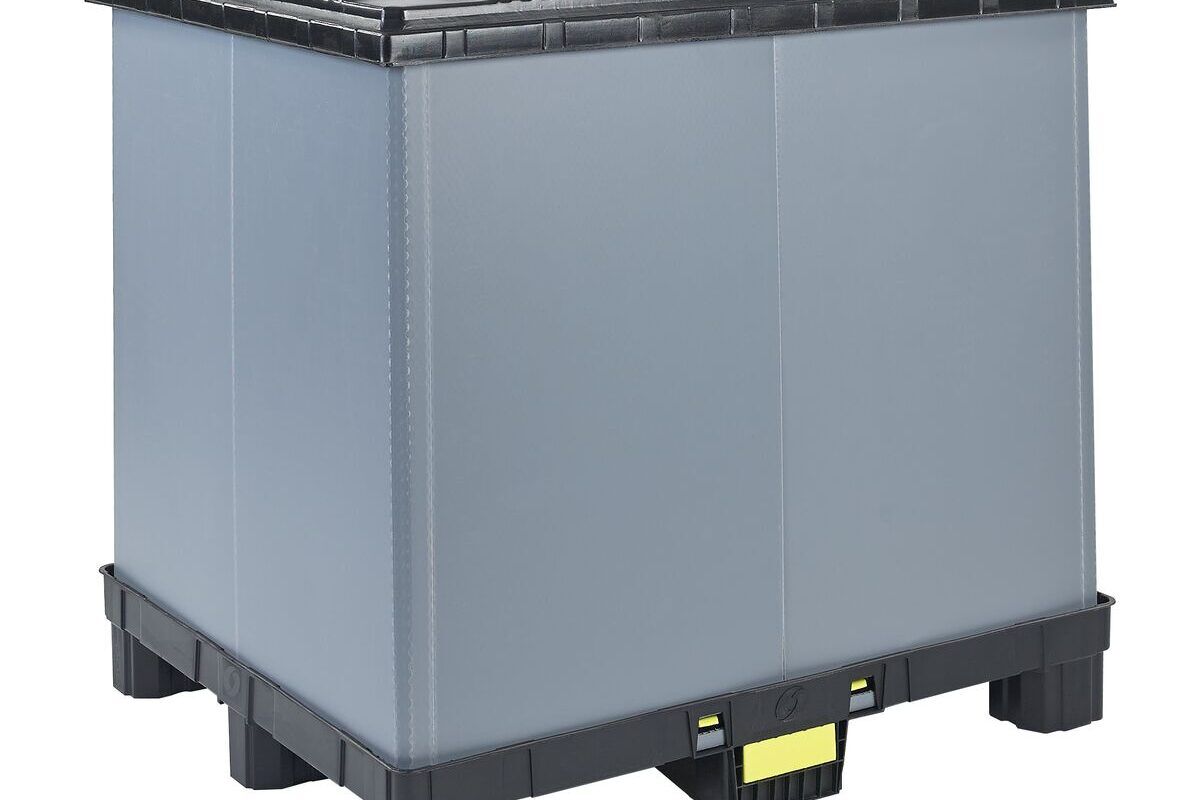

ORBIS offers the 1200 x 1000 OPTEBULK, a new pallet, top-cap, and sleeve system to its suite of reusable plastic bulk solutions. The 1200 x 1000 OPTEBULK sleeve pack is designed to help efficiently store and distribute primary packaging products, including beverage preforms, caps, and closures. Ideal for both manual and automated environments, the OPTEBULK system offers sustainability, transportation, and cost-saving benefits. The top frame and pallet nest together for secure stacking, maximizing space in tight manufacturing areas. Due to the container’s lightweight design and active latch technology, one person can easily engage and disengage the sleeves from the pallet for efficient assembly.

  • One-person assembly and collapse
  • Fully self-contained system when collapsed 50% more collapsed sleeve packs per trailer than alternative bulk container systems (330 per truckload)
  • High cubic capacity and low tare weight, allowing for more product to be shipped before weighing out a truck


Outside Length In 48.3
Outside Width In 41.5
Outside Height In 51.3
Inside Length In 45
Inside Width In 37.1
Prod Clearance In 43.3
Collapsed Height In 8.3
Max Container Cap Lb 800
Max Stacked Capacity Lb 3000
Weight Lb 73.9
Internal Volume Cu Ft 41.8
Maximum Loaded Stack 4
Return Ratio 6:01
53ft Trailer Qty Assembled 60
53ft Trailer Qty Collapsed 360


Pallet Hot Stamp

Pallet identification is easy with ORBIS' Hot Stamp option. It utilizes .5” block capital letters in a predefined area on the pallet or top cap. Availability, requirements, and location for the hot stamp can vary for each pallet.
