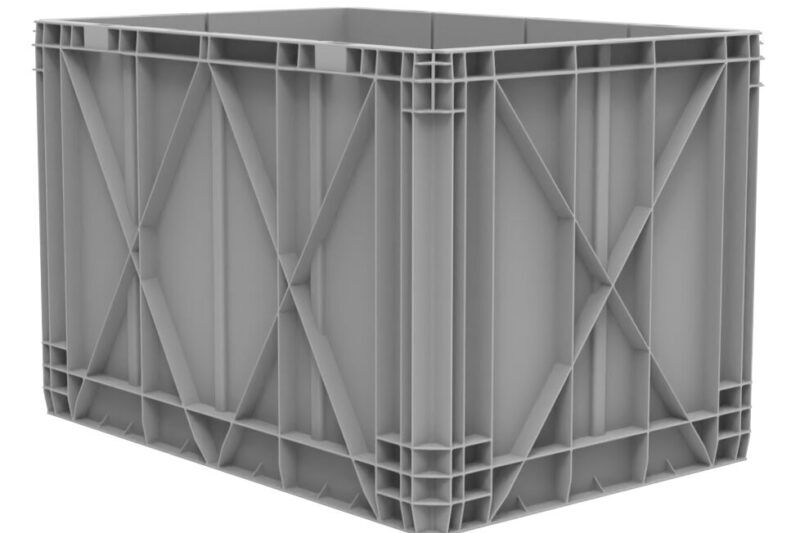

The AS6545-425 AutoStore Bin is purpose-built to integrate seamlessly with the AutoStore automated storage and retrieval systems (ASRS). Bins are manufactured with precision to meet AutoStore’s high quality standards. Support for Bin induction available. The AutoStore Bin is stackable and engineered to withstand hundreds of thousands of movements over years of service.
Bins are available in two different sizes:
| Outside Top Length (mm.) | 649 |
|---|---|
| Outside Top Width (mm.) | 449 |
| Outside Height (mm.) | 425 |
| Inside Top Length (mm.) | 603 |
| Inside Top Width (mm.) | 403 |
| Inside Height (mm.) | 404 |
| Weight (kg.) | 5.8 |
| Volume | 103.3 |
| Truckload Qty 53 ft. Trailer | 720 |
