NO2420-12

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

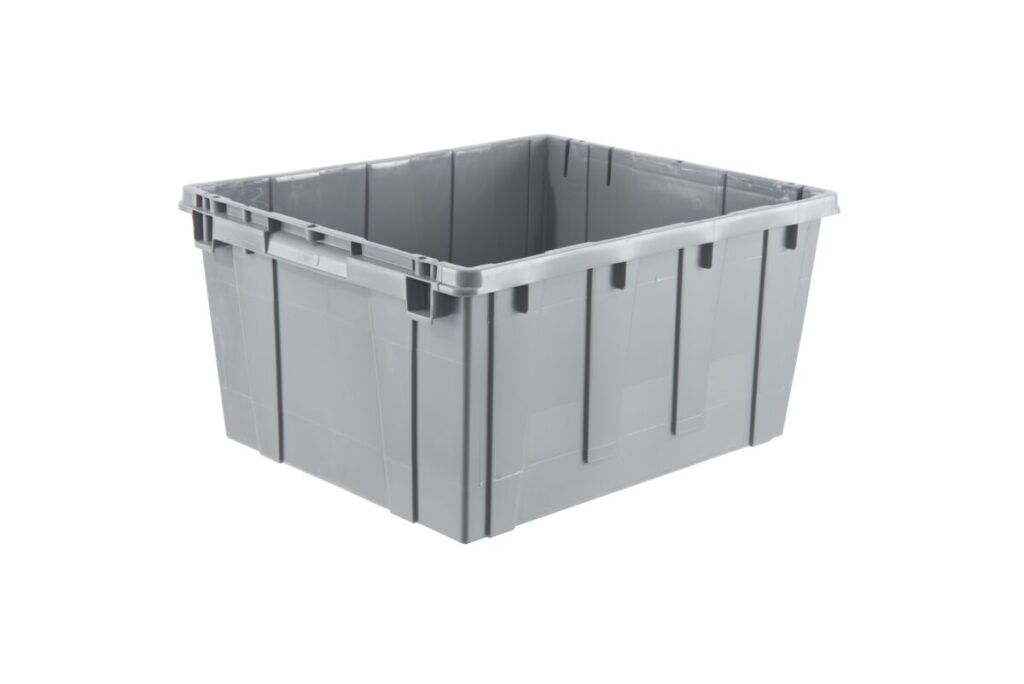

ORBIS’ Nest-Only Containers meet the diverse needs of many types of order picking and shipping requirements in modern distribution systems. Durable construction and superior design make these reusable containers last more than 250 trips, providing an excellent return on investment and reduced distribution cost per trip over corrugated boxes. Smooth, drafted walls for easy handling and dimensional consistency for repeatable performance in automated systems. These plastic containers are fully recyclable at the end of their service life.

  • 24 x 20 footprint
  • Stacks firmly with covers and nests securely when empty for optimum space utilization
  • Optional detached cover

Specifications

Outside Top Width In 19.6
Outside Bottom Length In 21.1
Outside Bottom Width In 17.1
Inside Top Length In 22.2
Inside Top Width In 18.2
Inside Bottom Length In 20.6
Inside Bottom Width In 16.5
Total Container Height In 12
Weight Lb 5.3
Volume Cu Ft 2.7
Nest Ratio 5.3:1
Truckload Qty 53ft Trailer 4800
Prod Clearance In 11.9

Options

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Cardholders

Polypropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

Container Hot Stamp

Hot Stamp identification is available for a wide variety of ORBIS totes. The original artwork must be supplied to ORBIS at the time of the order. Size, feasibility and available location of the hot stamp will vary for each container. Minimum shipment is required.

Sequential Numbering Hot Stamp

Specialty hot-stamp available with each character limited to a 1/2" height and 5 characters per line. The requirements for the area and location for sequential numbering varies for each container.

Compatible With

RCNO2420-1-5276

Size (IN) :  x   x

Similar Products

SNB2416-11-10159

Size (IN) : 23.6  x  15.7  x  11

RCNO2420-1-5276

Size (IN) :  x   x

CNO2115-1-5273

Size (IN) :  x   x

RCNO2115-2-5270

Size (IN) :  x   x

CNO2113-1-5267

Size (IN) :  x   x

NPL 266-5241

Size (IN) :  x   x

NPL 254-5236

Size (IN) :  x   x

CNOX2416-3-2335

Size (IN) : 24  x  16  x  1.5

CGS6050-2334

Size (IN) : 24  x  20  x  0.9

CNO2416-1-2336

Size (IN) : 24.3  x  16.3  x  1.8
