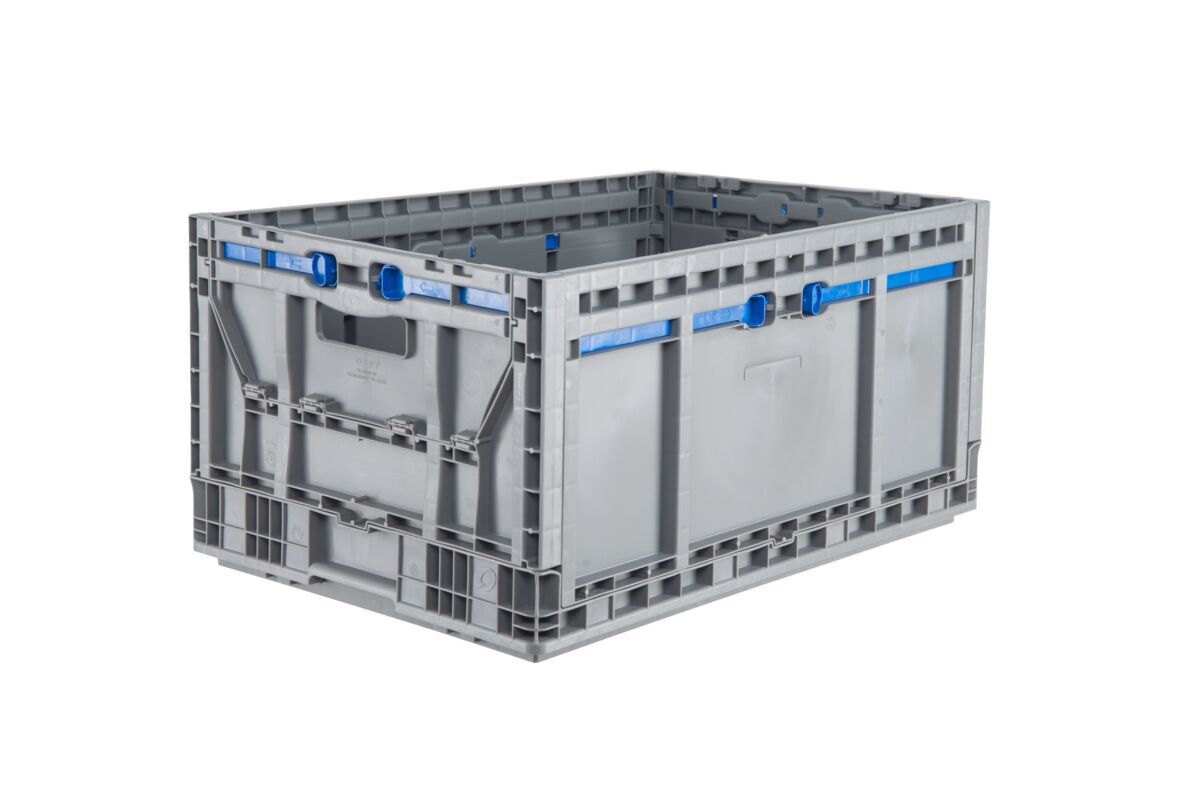

MLC6040-30

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

ORBIS AROS® automated system containers are designed for seamless integration into automated storage systems. The ORBIS 600 x 400 Mini-Load Collapsible tote (MLC) was designed specifically to interface with automated systems. The versatile 600 mm x 400 mm footprint integrates with standard equipment, while the 300 mm height works well with many product forms. It collapses when empty for space savings. The MLC6040-30 is injection molded for precision. Its dimensional consistency ensures repeatable performance during its entire service. The MLC6040-30 can be recovered, recycled, and reprocessed into other useful products at the end of its service life.

  • Interfaces seamlessly with conveyor systems
  • Cubes out a 40×48 pallet for movement within the supply chain
  • Easily assembles and collapses, with fingertip latches
  • Provides minimal deflection with higher weight loads due to its unique bottom design and reinforced rib design
  • Increases density in picking aisles, with an efficient drop door that sits flush to the tote
  • Offers easy access to product, with wide hopper doors
  • Allow associates to easily break apart stacks when manually handling, with shallow handle on short ends

Download our AROS® for Automated Storage Applications Guide for more info!

Specifications

Outside Top Length Mm 600
Outside Top Width Mm 400
Outside Bottom Length Mm 600
Outside Bottom Width Mm 400
Inside Top Length Mm 560
Inside Top Width Mm 365
Inside Bottom Length Mm 563
Inside Bottom Width Mm 366
Total Container Height Mm 300
Product Clearance Mm 281
Weight Kg 3.2
53 Trailer Qty 4800

Compatible With

80 x 60 PALLY®-2457

Size (IN) : 31.5  x  23.6  x  7.5

Similar Products

ML6040-22-2243

Size (IN) : 23.6  x  15.8  x  8.6

ML6040-30-2244

Size (IN) : 23.6  x  15.8  x  11.8

ML6040-325-2245

Size (IN) : 23.6  x  15.7  x  12.8

MLN6543-32-2246

Size (IN) : 25.5  x  16.9  x  12.5

ML6545-325-2247

Size (IN) : 25.6  x  17.7  x  12.8

NOH2416-12-2249

Size (IN) : 23.6  x  15.8  x  12.6

NOH2821-14-2250

Size (IN) : 27.9  x  20.6  x  17.9
