45 x 54 MI CISS LP

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

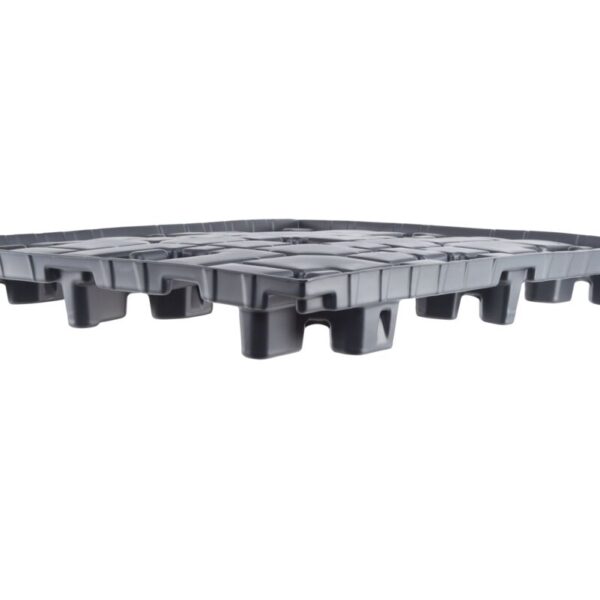

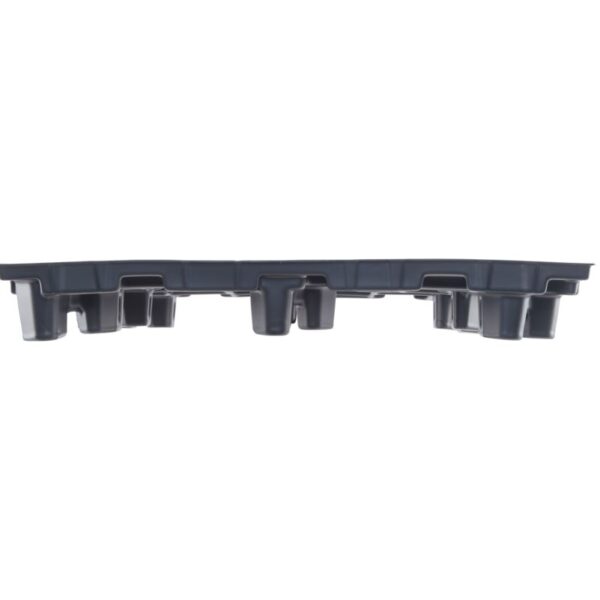

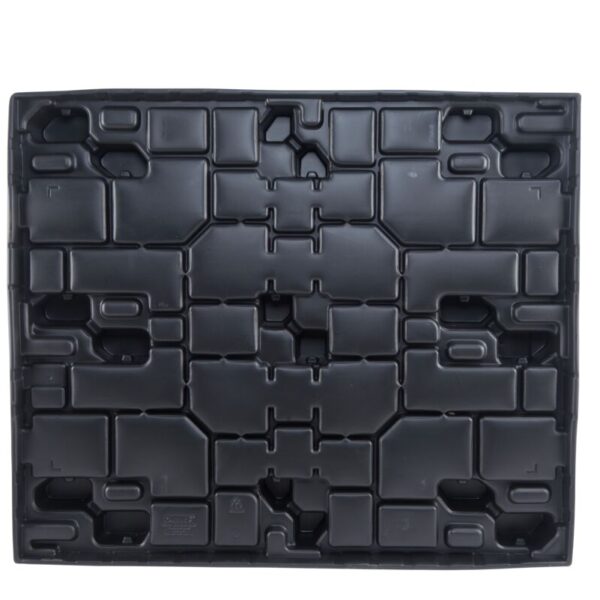

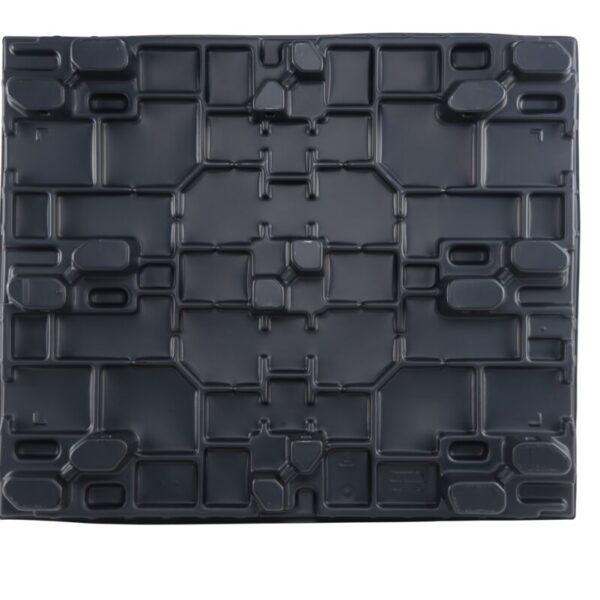

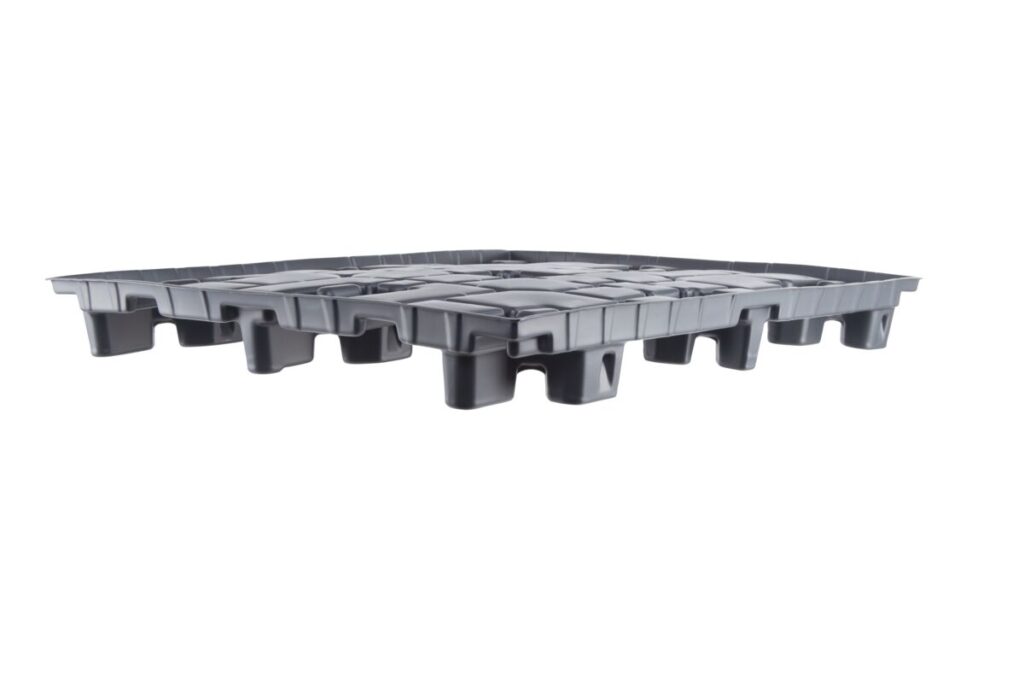

The ORBIS 45 x 54 MI CISS LP pallet moves, stores and distributes product loads within a single warehouse/distribution center or entire supply chain. From raw material to finished goods, reusable plastic pallets protect product until it reaches its final destination. When empty, these pallets nest for a cost-efficient return trip or warehouse storage. Their dimensional consistency ensures an effortless interface with all types of high-speed automation and material-handling equipment. ORBIS nestable pallets are lightweight and easy to manually handle, with no nails, splinters, or broken boards to risk employee injury. This plastic pallet offers an economic, environmental, and efficient alternative to wood pallets or skids.

  • Single sheet thermoformed (HMWPE)
  • Recyclable
  • Extended lengths accommodate custom-sized containers, including ORBIS Cut-N-Weld containers
  • Mirror-image design that allows the pallet to be used as a top cap

Specifications

Outside Length In 55
Outside Width In 46.2
Inside Length In 54.1
Inside Width In 45.3
Height In 6.5
Weight Lb 23
Nest Ratio 2:01
Static Load Capacity Lb 15000
Dynamic Load Capacity Lb 2500
Truckload Qty 53ft Trailer 660

Options

Molded-In Logo

Molded-In Logo identification is a type of permanent identification that is molded into product. Original artwork must be supplied to ORBIS at the time of the order. Availability, requirement, and location for the molded-in identification can vary for each product.

Vinyl Labels

Vinyl Labels are flexible plastic labels with adhesive backing that affix securely to your pallet. These long lasting labels are for use on all ORBIS thermoformed (HMWPE) pallets. Availability, requirement, and location for the vinyl labels can vary for each pallet. *Special vinyl labels are now available for some structural foam pallets. Please contact ORBIS for details.

Custom Color Striping

Custom Color Striping is available on most thermoformed pallets and thermoformed OPTE Pallets to provide a unique identification alternative. Standard stripe widths are two and four inches. Stripe color must be specified at the time of the order and requires minimum order quantities.

Seat Belt Assemblies

Seat Belt Assemblies attach to the pallet and top cap to effectively secure pallet loads. ORBIS' innovative seat belts accommodate high stack loads and will not twist, tangle or jam. Retractors are typically located in the pallet legs and the buckles are installed on the top caps.

Compatible With

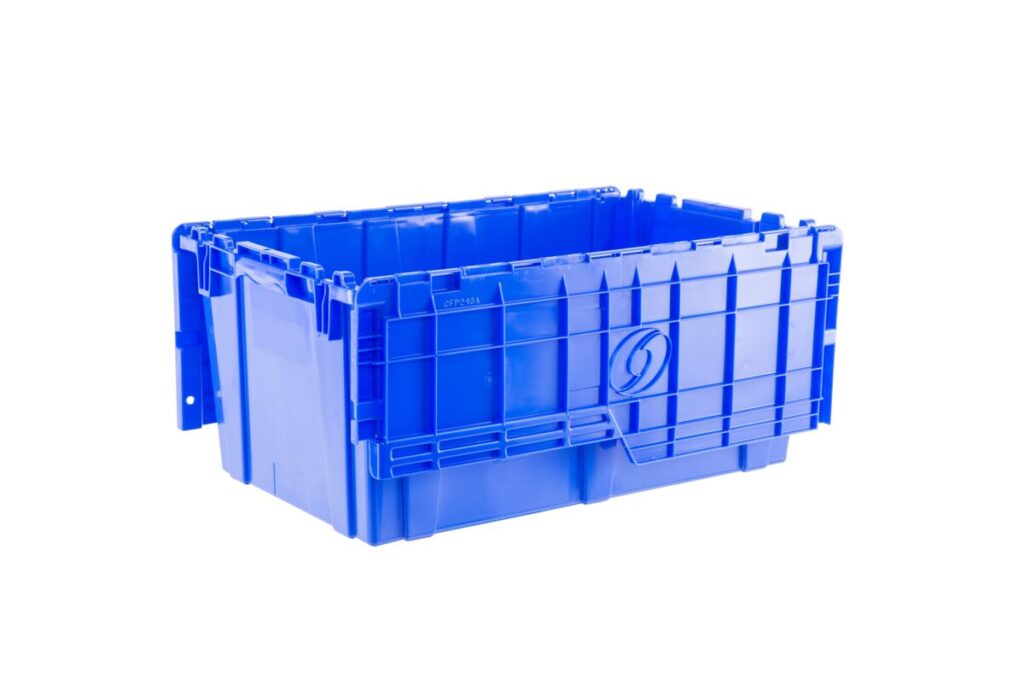

FP243

Size (IN) : 26.9  x  16.9  x  12.1

FP244

Size (IN) : 26.9  x  16.9  x  12.6
