HDR3230-30

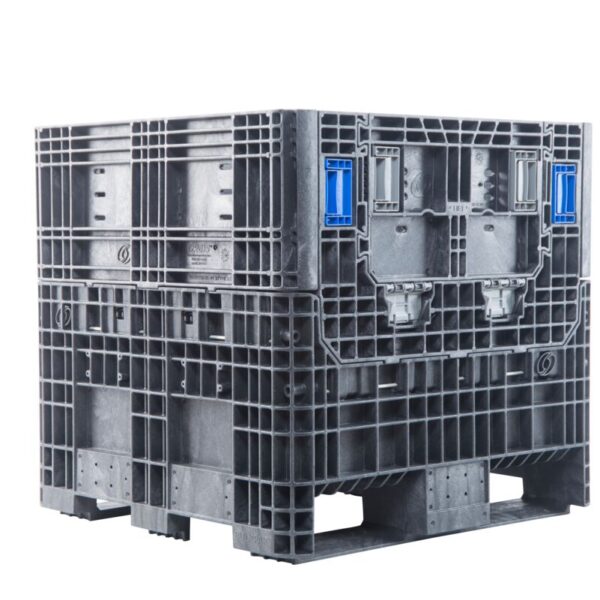

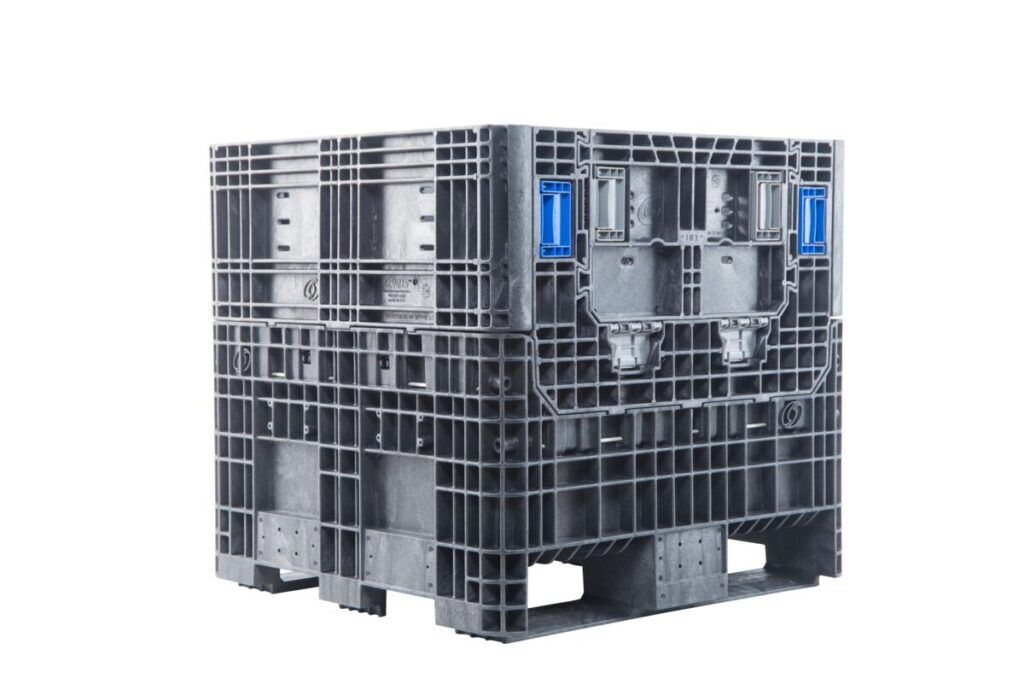

BulkPak® Containers 32x30 HDR3230-30 image
BulkPak® Containers 32x30 HDR3230-30 image

The heavy-duty BulkPak® 3230 HDR Series reusable containers are ideal for metal stampings and other heavy, dense components. Containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping these bulk bins stack securely atop each other. Designed to hold 2,000 lbs, these collapsible containers are built for long-lasting durability in heavy-duty applications. Palletboxes offer the strength and rugged durability demanded in todays material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected distribution of load, handling methods, number and type of access doors and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

  • 32" x 30" x 30" footprint
  • Structural-foam molded in high-density polyethylene
  • Reach-through, spring-loaded ergonomic latches make collapsing containers and opening/closing access doors extremely easy
  • Deck: Solid deck with drain holes
  • Two base options include standard 4-way forklift entry and a conveyable base with 2-way forklift entry. Note: Due to fork entry size on the 30" side, pallet jack entry is not possible on the short side of this bin.
  • Access doors: 0, 1 or 2 doors on the 32” side (Door configurations vary by model)
  • Popular applications: Automotive components, bearings, hardware, industrial equipment, metal parts, plastics and rubber parts, resin and powder and tools

Load more videos
  Download Sales Sheet
  HDR3230-30
Outside Top Dimensions Length32.0"
Outside Top Dimensions Width30.0"
Outside Top Dimensions Height30.0"
Inside Top Dimensions Length29.2"
Inside Top Dimensions Width27.3"
Product Clearance23.3"
Collapsed Height18.2"
Container Capacity2,000 lbs
Weight73 lbs
Internal Volume10.8 ft3
Maximum Loaded Stack Static6 high
Maximum Loaded Stack Dynamic4 high
Return Ratio1.7:1
Access Door Openings Height Long Side11.3"
Access Door Openings Width Long Side18.0"
Fork Openings Height Long Side3.4"
Fork Openings Height Short Side2.3"
Fork Openings Width Long Side10.2"
Fork Openings Width Short Side7.1"
40 Ft Container Quantities Without Covers Collapsed210
40 Ft Container Quantities Without Covers Assembled126
Truckload Quantities 53 Ft Without Covers Collapsed300
Truckload Quantities 53 Ft Without Covers Assembled180
HDR3230-30
Outside Top Dimensions Length32.0"
Outside Top Dimensions Width30.0"
Outside Top Dimensions Height30.0"
Inside Top Dimensions Length29.2"
Inside Top Dimensions Width27.3"
Product Clearance23.3"
Collapsed Height18.2"
Container Capacity2,000 lbs
Weight73 lbs
Internal Volume10.8 ft3
Maximum Loaded Stack Static6 high
Maximum Loaded Stack Dynamic4 high
Return Ratio1.7:1
Access Door Openings Height Long Side11.3"
Access Door Openings Width Long Side18.0"
Fork Openings Height Long Side3.4"
Fork Openings Height Short Side2.3"
Fork Openings Width Long Side10.2"
Fork Openings Width Short Side7.1"
40 Ft Container Quantities Without Covers Collapsed210
40 Ft Container Quantities Without Covers Assembled126
Truckload Quantities 53 Ft Without Covers Collapsed300
Truckload Quantities 53 Ft Without Covers Assembled180

All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by distribution of load, handling methods, number and type of access doors and temperature beyond the range of 0° F to 120° F.
