AG4048-46

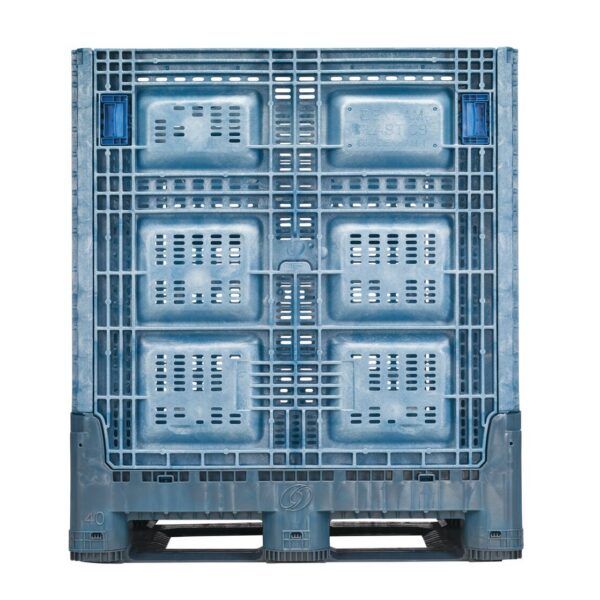

Side view of AG4048-46 reusable bulk container.

The AG4048-46 blue industrial plastic bulk bin with vented sides is shown upright against a white background.

Top view of AG4048-46 reusable bulk container.

Top view of an empty AG4048-46 blue reusable bulk bin.

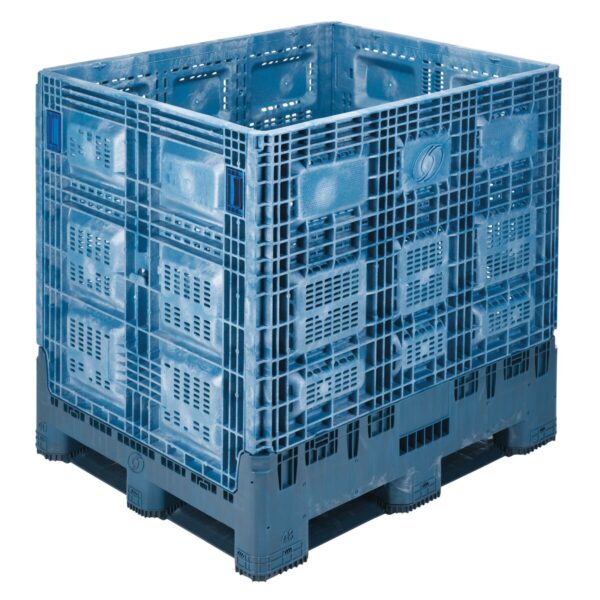

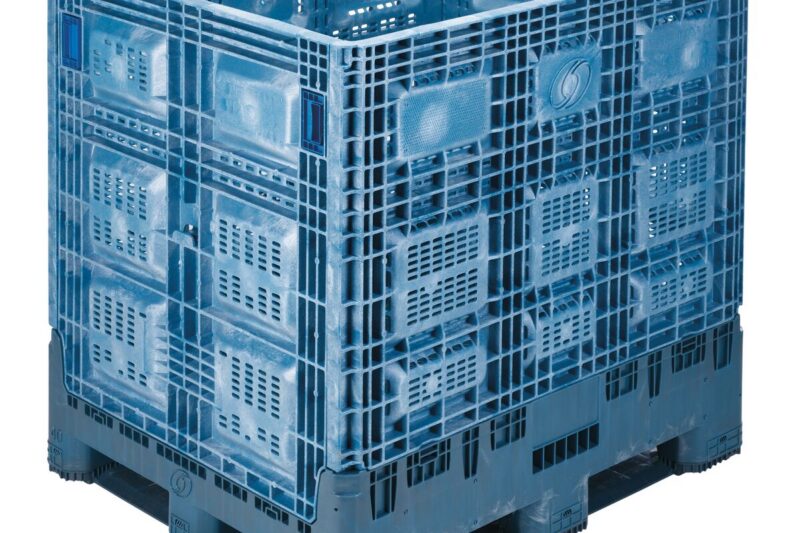

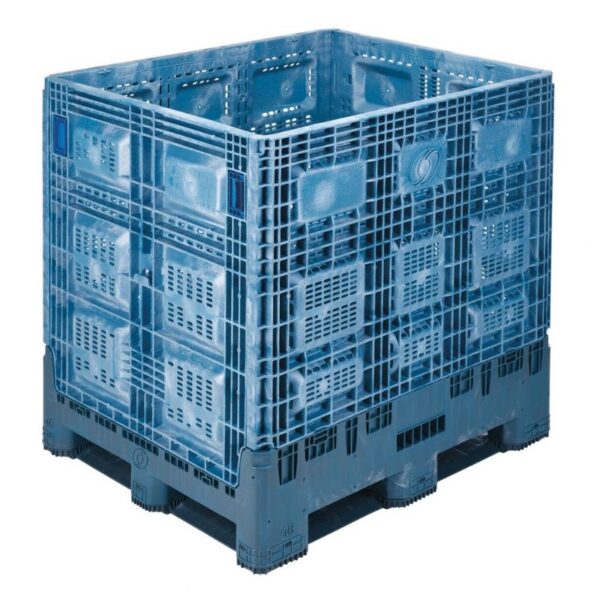

The AG4048-46 is a blue industrial plastic bulk bin.

Can be made with Recycled Plastics

An Ocean in Mind Product

Connect With Your ORBIS® Expert

Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

Compare

Description
Specifications

Description

The AG4048-46 container is engineered to support a broad range of agricultural products, sizes, shapes, and weights. Its efficient design helps optimize handling, storage, and shipping by reducing the number of containers and trips required. At end of life, the AG4048-46 is fully recyclable.

High-density polyethylene
Structural-foam ventilated sidewalls
Single piece high pressure molded base with flow-through design
High pressure snap in picture frame stringer
Consistent tare weight that improves inventory and shipping efficiency

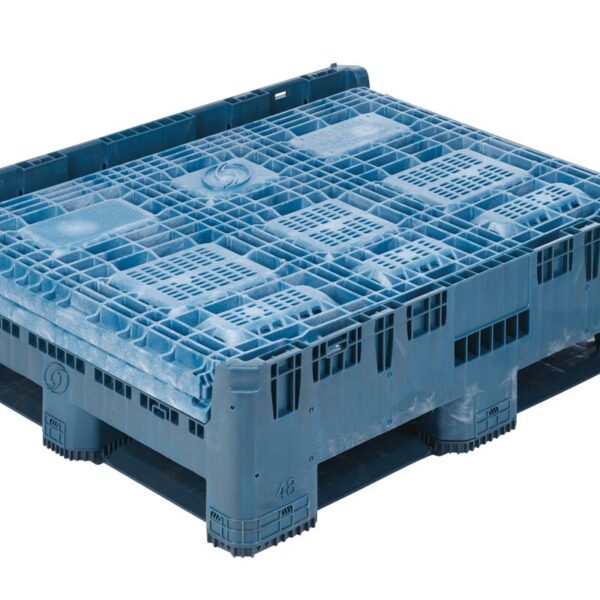

Collapse when empty for reduced return transportation costs and warehouse space savings
Bins stack securely atop each other when full or collapsed
Self-standing sidewall for safe, efficient assembly and collapse
Also available in 32” height

Additional information

Weight	147 lbs
Dimensions	48 × 40 × 46 in
Outside Length (in.)	48
Outside Width (in.)	40
Outside Height (in.)	46
Inside Length (in.)	45
Inside Width (in.)	37
Product Clearance (in.)	39.2
Collapsed Height (in.)	13.5
Container Capacity (lb.)	2000
Weight (lb.)	147
Internal Volume (cu. ft.)	39.2
Return Ratio	4:1
Maximum Loaded Stack (Static)	4 High
Maximum Loaded Stack (Dynamic)	2 High
53 ft. Trailer Qty (Collapsed)	240
53 ft. Trailer Qty (Assembled)	60

Download Product Information*

*The information contained herein is subject to change without notice. Statements regarding the application of the product(s) are based on general industry knowledge and are non-binding; it is the customer’s responsibility to validate that a particular product is suitable for use in a particular application. The information contained herein does not expand or otherwise modify ORBIS’ terms and conditions of sale, including, but not limited to, the warranty expressed therein. ORBIS hereby disclaims: (1) all liability with respect to the accuracy, reliability, or completeness of the information contained herein; and (2) all warranties, express or implied, with respect to the information contained herein, including, without limitation, with respect to the suitability of the products for any particular purpose or application.

Options

Cardholders

Polypropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Placard Boards

Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
