HDR4048-39

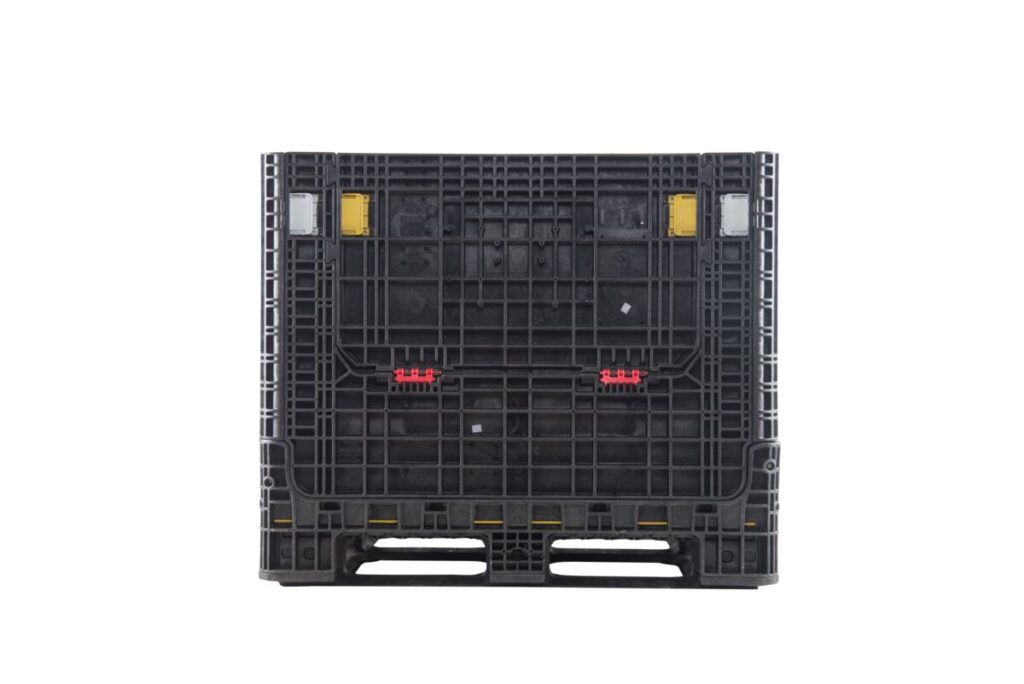

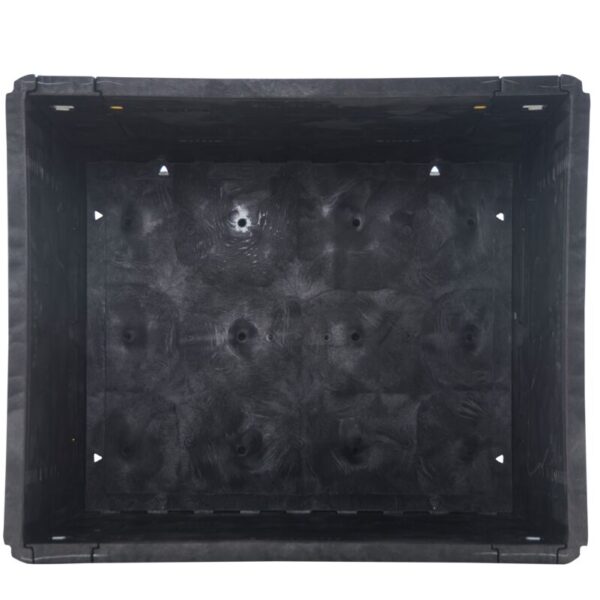

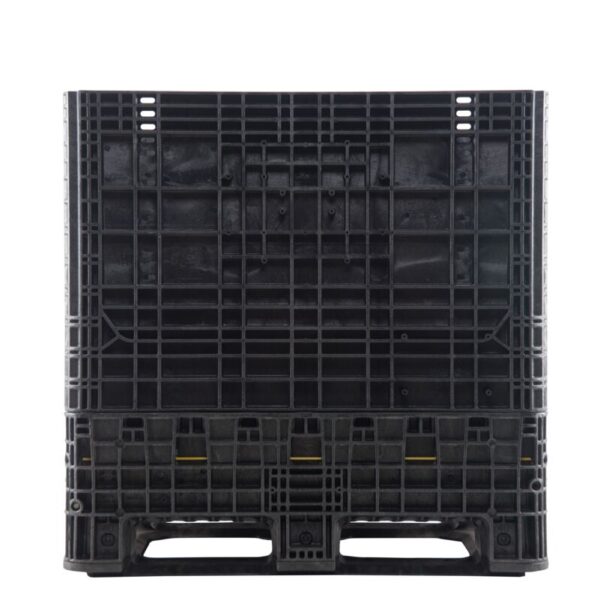

BulkPak® Containers 40x48 HDR4048-39 image
BulkPak® Containers 40x48 HDR4048-39 image

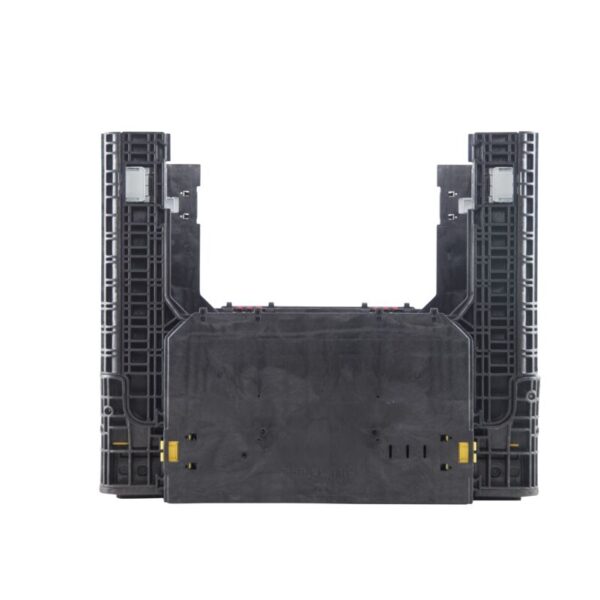

The heavy-duty BulkPak® 4048 HDR series was designed for rugged applications. These reusable containers are made of tough, durable high-density polyethylene for long-life performance under the harshest conditions and provides excellent product protection. Bulk containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping these bulk bins stack securely atop each other. Large access door for interior access. Palletboxes offer the strength and rugged durability demanded in todays material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by distribution of load, handling methods, number and type of access doors and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

  • 40" x 48" x 39" footprint
  • Structural-foam molded in high-density polyethylene
  • Container capacity: 2,000 lbs
  • Access Doors: 0 doors or 2 doors on the long side
  • Base: All-plastic picture frame bottom
  • Deck: Solid deck with drain holes
  • Sidewalls: Solid
  • Popular applications: Automotive components, bearings, hardware, industrial equipment, metal parts, plastics and rubber parts, resin and powder and tools

Load more videos
  Download Sales Sheet
  HDR4048-39
Outside Top Dimensions Length47.3"
Outside Top Dimensions Width39.6"
Outside Top Dimensions Height39.4"
Inside Top Dimensions Length43.6"
Inside Top Dimensions Width36.0"
Product Clearance32.8"
Collapsed Height13.6"
Container Capacity2,000 lbs
Weight170 lbs
Internal Volume29.8 ft3
Maximum Loaded Stack Static5 high
Maximum Loaded Stack Dynamic2 high
Return Ratio2.9:1
Access Door Openings Height Long Side19.4"
Access Door Openings Height Short Side19.4"
Access Door Openings Width Long Side18.0"
Access Door Openings Width Short Side32.7"
Fork Openings Height Long Side3.5"
Fork Openings Height Short Side3.5"
Fork Openings Width Long Side13.0"
Fork Openings Width Short Side11.4"
40 Ft Container Quantities Without Covers Collapsed168
40 Ft Container Quantities Without Covers Assembled42
Truckload Quantities 53 Ft Without Covers Collapsed240
Truckload Quantities 53 Ft Without Covers Assembled60
HDR4048-39
Outside Top Dimensions Length47.3"
Outside Top Dimensions Width39.6"
Outside Top Dimensions Height39.4"
Inside Top Dimensions Length43.6"
Inside Top Dimensions Width36.0"
Product Clearance32.8"
Collapsed Height13.6"
Container Capacity2,000 lbs
Weight170 lbs
Internal Volume29.8 ft3
Maximum Loaded Stack Static5 high
Maximum Loaded Stack Dynamic2 high
Return Ratio2.9:1
Access Door Openings Height Long Side19.4"
Access Door Openings Height Short Side19.4"
Access Door Openings Width Long Side18.0"
Access Door Openings Width Short Side32.7"
Fork Openings Height Long Side3.5"
Fork Openings Height Short Side3.5"
Fork Openings Width Long Side13.0"
Fork Openings Width Short Side11.4"
40 Ft Container Quantities Without Covers Collapsed168
40 Ft Container Quantities Without Covers Assembled42
Truckload Quantities 53 Ft Without Covers Collapsed240
Truckload Quantities 53 Ft Without Covers Assembled60

All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by distribution of load, handling methods, number and type of access doors and temperature beyond the range of 0° F to 120° F.
