HDMX4845-50

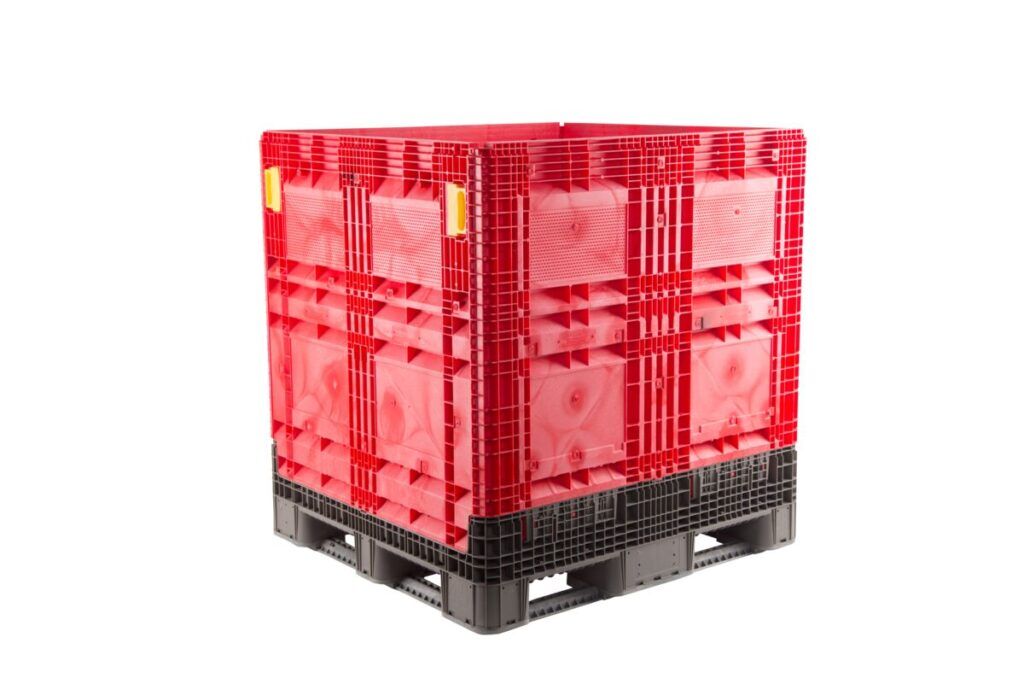

BulkPak® Containers 48x45 HDMX4845-50 image

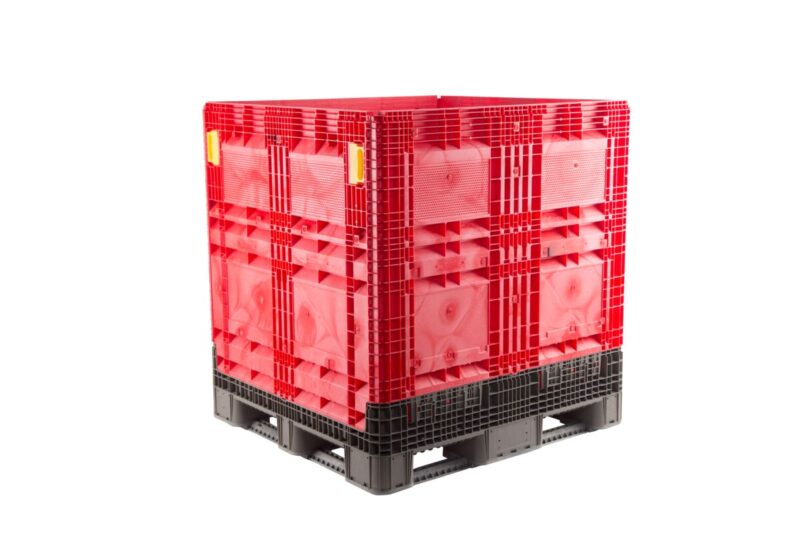

BulkPak® Containers 48x45 HDMX4845-50 image

The HDMX4845-50 MaxCube was designed for superior shipping efficiency and maximum cubic capacity. It offers non-sequential folding action and collapses easily to a 4.0 to 1 return ratio. On the production floor, the MaxCube is compatible with many types of dumping equipment. The reusable, collapsible MaxCube maximizes payloads while lowering shipping costs. With smooth interior surfaces and a cover to protect contents, the MaxCube ensures product cleanliness. It is manufactured in FDA compliant material to meet sanitary requirements for packaging handling in food, beverage, and pharmaceutical applications.

Download Reusables for the Primary Packaging Supply Chain Brochure


  • 45" x 48" x 50" footprint
  • Smooth interior walls prevent product damage during loading and unloading
  • Recessed cover reduces damage (included with container)
  • Large, easy-release latches for rapid assembly and collapse
  • 4-way fork truck entry
  • Protected area for multiple identification options
  • Popular applications: Preforms, bottles, caps and closures

Orbis BulkPak Handling Guidelines

  Download Sales Sheet
  HDMX4845-50
Outside Top Dimensions Length48.0"
Outside Top Dimensions Width44.5"
Outside Top Dimensions Height50.0"
Inside Top Dimensions Length45.0"
Inside Top Dimensions Width41.5"
Product Clearance43.9"
Collapsed Height13.0"
Container Capacity1,000 lbs
Weight140 lbs
Internal Volume50.0 ft3
Maximum Loaded Stack Static4 high
Maximum Loaded Stack Dynamic2 high
Return Ratio4.0:1
Fork Openings Height Long Side3.5"
Fork Openings Height Short Side3.5"
Fork Openings Width Long Side13.0"
Fork Openings Width Short Side10.5"
40 Ft Container Quantities Without Covers Collapsed126
40 Ft Container Quantities Without Covers Assembled36
Truckload Quantities 53 Ft Without Covers Collapsed196
Truckload Quantities 53 Ft Without Covers Assembled56
HDMX4845-50
Outside Top Dimensions Length48.0"
Outside Top Dimensions Width44.5"
Outside Top Dimensions Height50.0"
Inside Top Dimensions Length45.0"
Inside Top Dimensions Width41.5"
Product Clearance43.9"
Collapsed Height13.0"
Container Capacity1,000 lbs
Weight140 lbs
Internal Volume50.0 ft3
Maximum Loaded Stack Static4 high
Maximum Loaded Stack Dynamic2 high
Return Ratio4.0:1
Fork Openings Height Long Side3.5"
Fork Openings Height Short Side3.5"
Fork Openings Width Long Side13.0"
Fork Openings Width Short Side10.5"
40 Ft Container Quantities Without Covers Collapsed126
40 Ft Container Quantities Without Covers Assembled36
Truckload Quantities 53 Ft Without Covers Collapsed196
Truckload Quantities 53 Ft Without Covers Assembled56

All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by distribution of load, handling methods, number and type of access doors and temperature beyond the range of 0° F to 120° F.
