HDR7048-34

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
  • An Ocean in Mind Product An Ocean in Mind Product
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

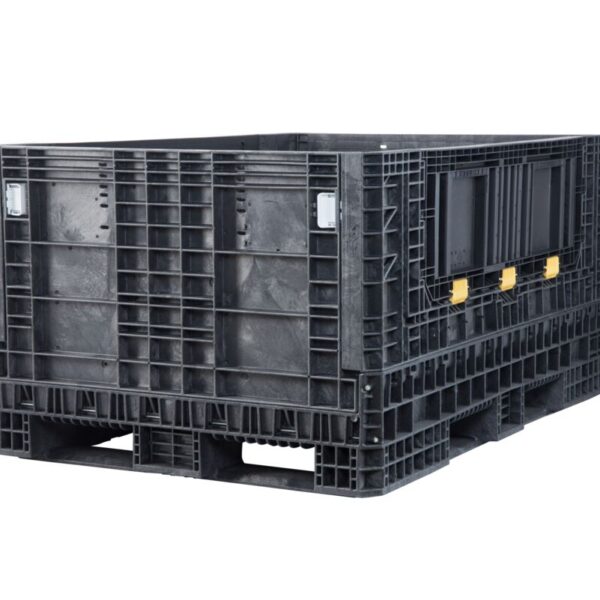

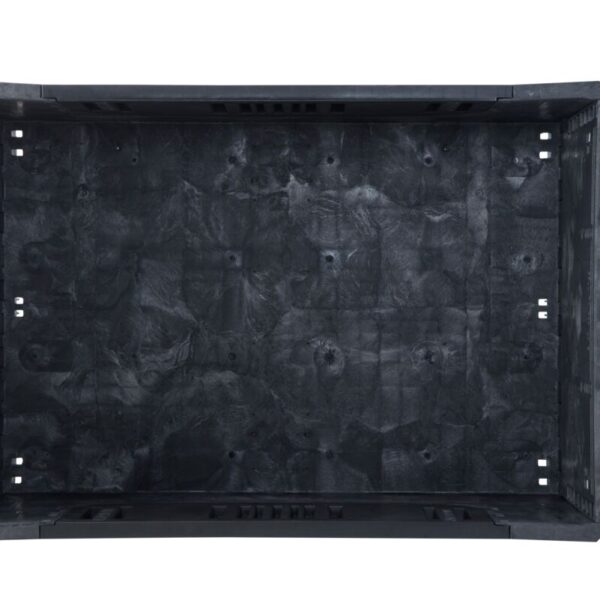

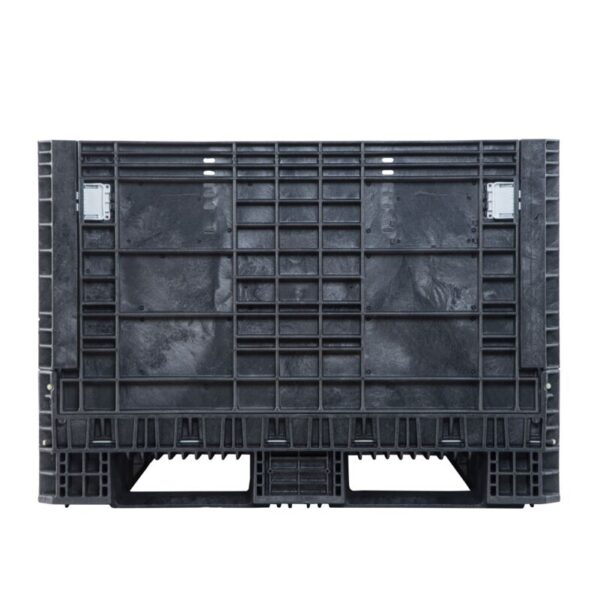

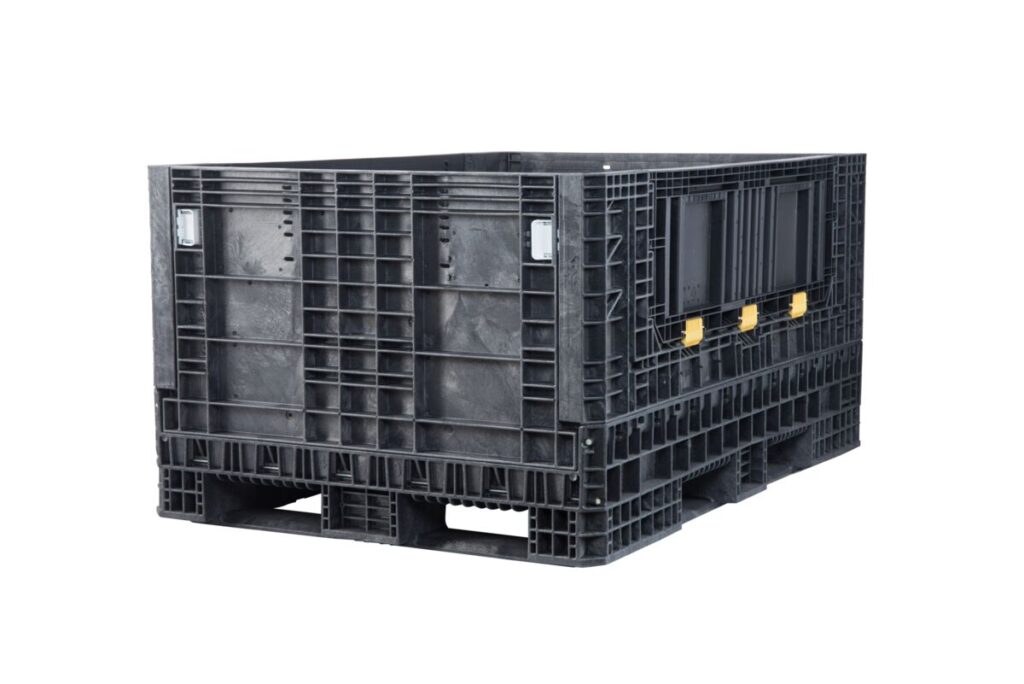

Extended-length containers accommodate long and hard-to-fit components and parts. The BulkPak 7048 HDR Series accommodates long and hard-to-fit component parts. All containers are structural-foam molded in high-density polyethylene for durability and are available in side-loading Maximus styles. Unitized loads can be delivered directly to the assembly line for immediate part presentation, with no unwrapping or unbanding. Bulk containers collapse when empty for reduced return transportation costs and warehouse space savings. During storage and shipping, these bulk bins stack securely atop each other. Pallet boxes offer the strength and rugged durability demanded in today’s material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by the distribution of load, handling methods, number, type of access doors, and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

  • 70 x 48 x 34 footprint
  • Areas on all four sides for identification options
  • Container capacity: 1500 lbs
  • Access doors: 0, 2, or 4 doors available
  • Deck: Solid deck with drain holes
  • Sidewalls: Solid
  • Base: All-plastic picture frame bottom with rounded legs for easy fork truck handling and reduced risk of “short forking”
  • Articulated door hinge allows doors to stay flat when open
  • Wing-wall door style available
  • Popular applications: Automotive, appliance, and transportation equipment

Specifications

Outside Length In 70
Outside Width In 48.5
Outside Height In 34
Inside Length In 66.4
Inside Width In 44.5
Prod Clearance In 26.7
Collapsed Height In 13.1
Container Capacity Lb 1500
Weight Lb 220
Maximum Loaded Stack Static 4 High
Maximum Loaded Stack Dynamic 3 High
Return Ratio 2.6:1
Door Openings Long H In 16.7
Door Openings Long W In 45.7
Door Openings Short H In 16.8
Door Openings Short W In 33
53ft Trailer Qty Assembled 51
53ft Trailer Qty Collapsed 136

Options

Cardholders

Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your BulkPak. These plates are designed for durability and a long service life. Most ORBIS BulkPaks can accommodate identification plates. Availability, requirement, and location of the identification plates can vary for each container.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Placard Boards

Board placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.
