OPTEBULK 12×10-52

Can be made with Recycled Plastics

Description

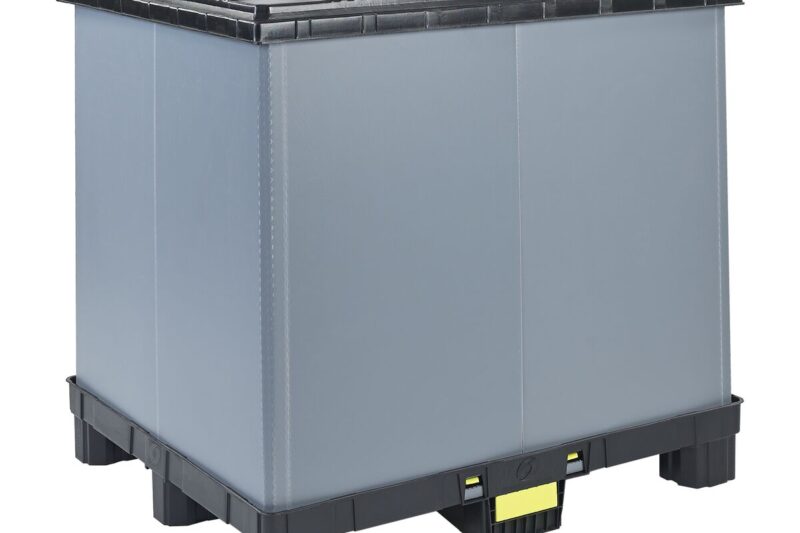

The OPTEBULK 12×10-52 sleeve pack system sleeve pack is a collapsible bulk container comprised of a reusable sleeve, pallet and top cap. A sustainable alternative to single-use paper gaylords which offers transportation, packaging and warehouse cost savings.

  • Lightweight container can be assembled and collapsed with single operator
  • Effective collapsibility – up to 120% more containers per trailer than rigid plastic knockdown containers
  • Clamshell design kits all components together for efficient storage
  • Sleeves are fabricated from Tri-Clone, a tri-laminated PP extrusion with bi-directional strength
  • Smooth, solid pallet deck to protect your product from compression damage

* Performance characteristics are based on uniform static loads for a 10mm tri-laminated m-fold sleeve style with 0 access doors and may be affected by distribution of load, handling methods, sleeve material and style (including multi-piece sleeves and access doors) and temperatures beyond the range of 0° F to 120° F

* Stacking above 6-high never recommended”

Additional information

Weight 73.9 lbs
Dimensions 48.3 × 41.5 × 51.3 in
Outside Length (in.)

48.3

Outside Width (in.)

40.4

Outside Height (in.)

51.8

Inside Length (in.)

45.4

Inside Width (in.)

37.4

Prod Clearance (in.)

43.0

Collapsed Height (in.)

8.3

Max Stacked Capacity (lb.)

3000

Weight (lb.)

74.8

Internal Volume (cu. ft.)

43.2

Max Container Cap. (lb.)

1000

Maximum Loaded Stack (Static)

5.0

Maximum Loaded Stack (Dynamic)

2.0

Return Ratio

5.5:1

53 ft. Trailer Qty (Assembled)

60

53 ft. Trailer Qty (Collapsed)

330
