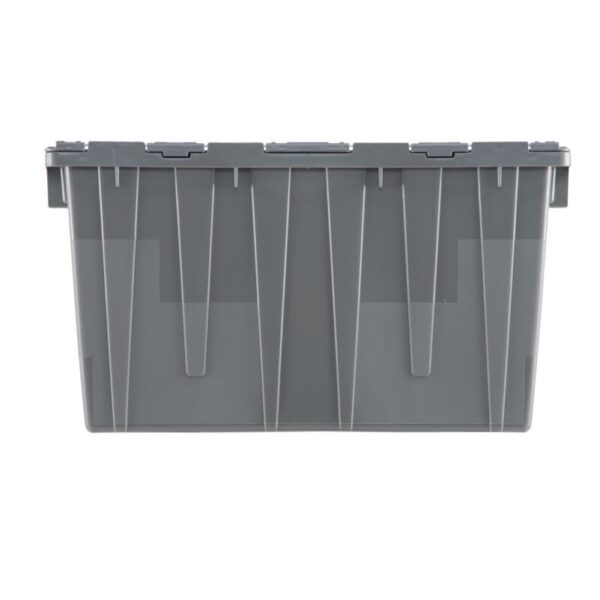

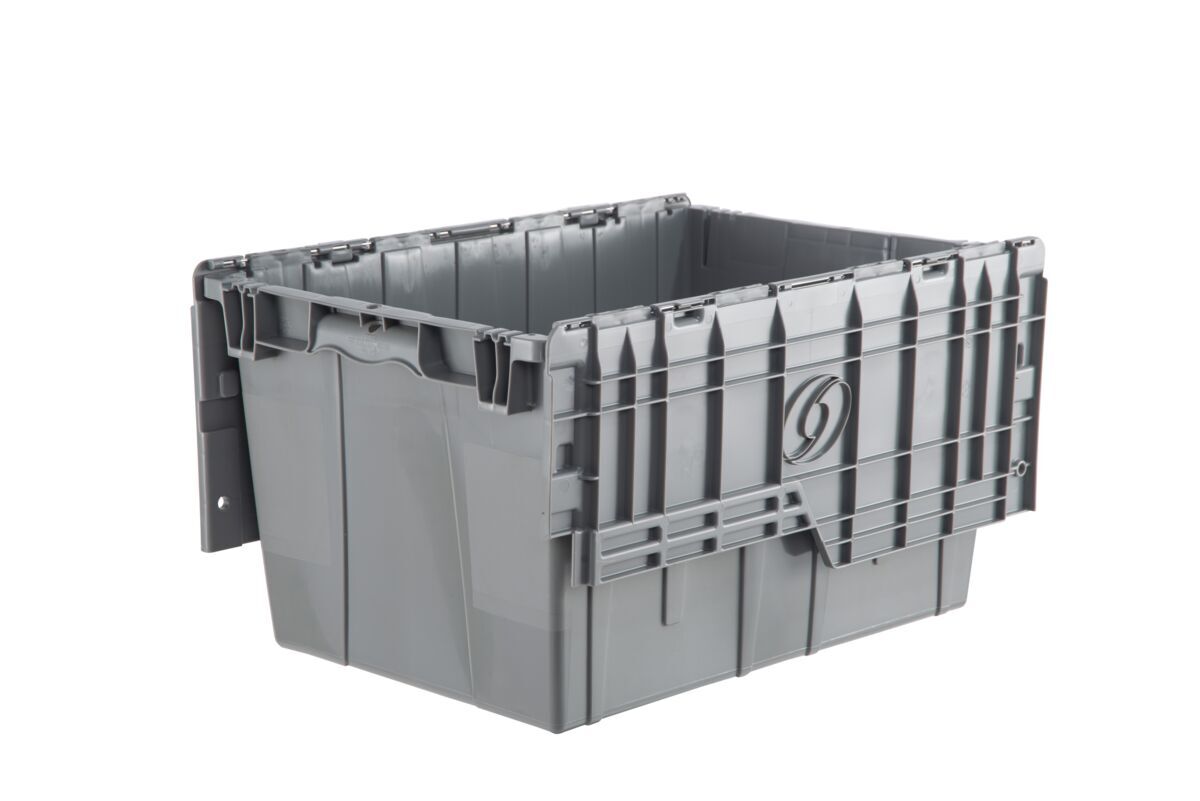

The FP171 drives efficiency in all types of distribution applications. These reusable totes stack when closed and nest when open for space-saving storage and return. With lockable, hinged lids that prevent the costly loss of product, these attached-lid containers are the ideal solution for split-case picking and shipping. The durable construction and superior design of these reusable containers ensure a long service life, providing an excellent return on investment and reduced distribution cost per trip when compared to corrugated boxes. Contoured handles for easy handling and dimensional consistency for repeatable performance in automated systems. This FliPak is fully recyclable at the end of its service life.

  • 21.8 x 14.9 x 12.1 footprint
  • Textured bottom
  • Choose from solid, drain-hole, or plus-grid bottom styles
  • Injection molded
  • Optimizes outbound trucks with more stacked containers per 53 trailer
  • Inside product clearance allows more product per container
  • With shorter nest stop and narrow gull wing span
  • More empty containers can be stacked in a standard 53 trailer for inbound trips


Outside Top Length In 21.8
Outside Top Width In 14.9
Outside Bottom Length In 18.7
Outside Bottom Width In 12.9
Inside Top Length In 19.8
Inside Top Width In 14.1
Inside Bottom Length In 18.2
Inside Bottom Width In 12.5
Total Container Height In 12.1
Prod Clearance In 11.2
Weight Lb 5.3
Volume Cu Ft 1.7
53 Trailer Qty 5280


Molded-In Reinforced Holes

Molded-in reinforced holes for standard security ties.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.


Polypropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

Container Hot Stamp

Hot Stamp identification is available for a wide variety of ORBIS totes. The original artwork must be supplied to ORBIS at the time of the order. Size, feasibility and available location of the hot stamp will vary for each container. Minimum shipment is required.

Sequential Numbering Hot Stamp

Specialty hot-stamp available with each character limited to a 1/2" height and 5 characters per line. The requirements for the area and location for sequential numbering varies for each container.

Long Side Banding Slot

Molded-in notch, on long side of tote, to accommodate banding.

Compatible With

80 x 60 PALLY®

Size (IN) : 31.5  x  23.6  x  7.5

40 x 48 XP Economy

Size (IN) : 48  x  40  x  5.75

40 x 48 XP Heavy Duty

Size (IN) : 48  x  40  x  5.8
