GS6040-18

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

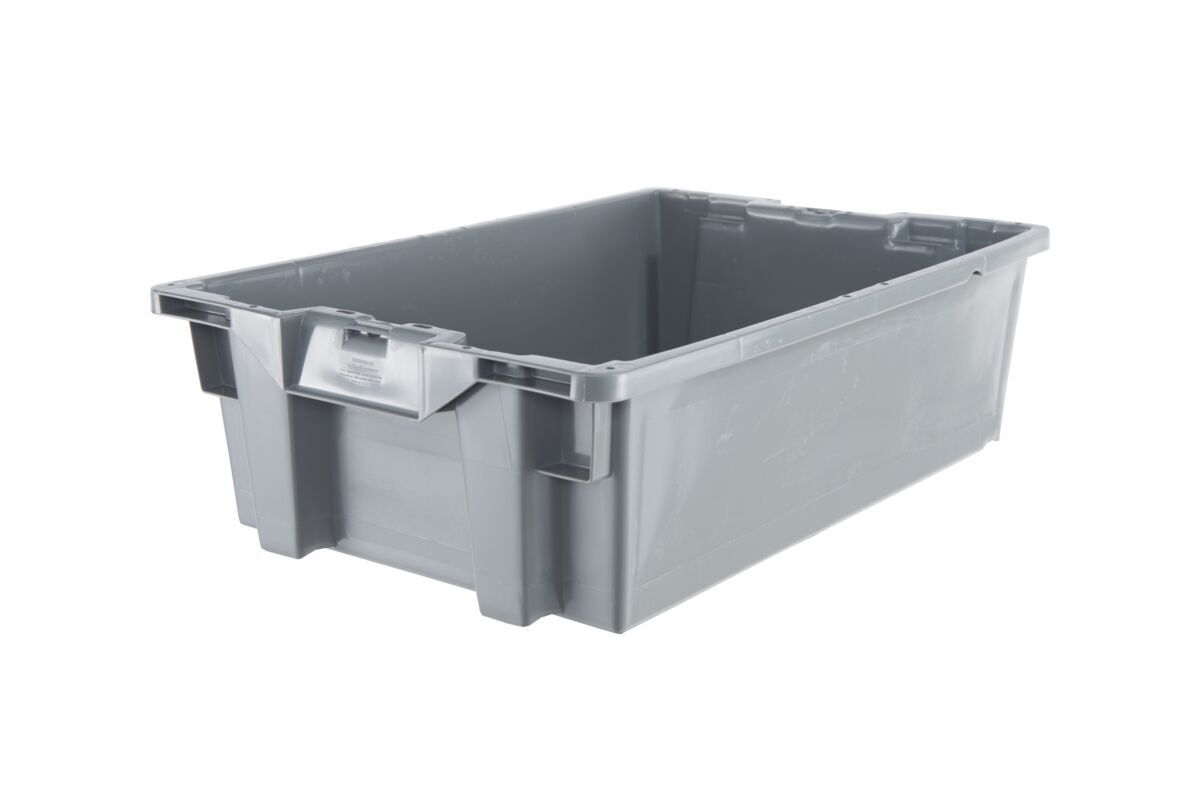

The 4048 Stack-N-Nest System is an integrated system of stack and nest containers, pallets, top caps, and dollies. These reusable plastic totes stack in a column, creating vertically modular loads and level stack heights. Containers are available with smooth bottoms for easy cleaning or textured bottom for conveyor use. Ventilated walls and bottoms are available for maximum airflow, easy cleaning, and rapid cooling. Contoured handles for easy and safe handling. Identification areas are located on the sides, ends, and covers. These plastic containers are fully recyclable at the end of their service life. *Please note that ORBIS publishes the specifications for this product line in inches, but the model name does not correspond to inches. This system was designed on a metric footprint and the model name reflects this.

  • 24 x 16 footprint
  • Stacks when rotated 180 degrees
  • Nests when returned to original position
  • Solid or ventilated walls
  • Smooth or textured bottom
  • Available in FDA-approved material
  • Available in ESD-protective material

Specifications

Inside Bottom Length In 19.3
Inside Bottom Width In 13.4
Total Container Height In 7.1
Product Clearance Required
Weight Lb 3.4
Volume Cu Ft 1
Nest Ratio 3.0:1
Truckload Qty 53ft Trailer 6150

Options

Smooth Bottom

Full smooth surface available on StakPak container bottom.

Textured Bottom

Molded-in textured surface available on StakPak container bottom.

Vented Bottom

Ventilated bottom available for maximum airlow and draining. Vented bottom style may vary.

Solid Sidewalls

Solid sidewall, with smooth internal surface.

Long Side Vented Sidewalls

Ventilated sides available for maximum airflow.

Compatible With

CGS6040-2333

Size (IN) : 24  x  16.1  x  1.3

80 x 60 PALLY®-2457

Size (IN) : 31.5  x  23.6  x  7.5

One Sided Standard Cart - 600 x 400-2445

Size (IN) : 50.5  x  16  x  59

DGS6040-2451

Size (IN) : 23.6  x  15.7  x  7.4

40 x 48 XP Economy-193

Size (IN) : 48  x  40  x  5.75

40 x 48 XP Heavy Duty-195

Size (IN) : 48  x  40  x  5.8

Similar Products

SNB2416-11-10159

Size (IN) : 23.6  x  15.7  x  11

GS6050-18-2194

Size (IN) : 23.6  x  19.7  x  7.6

GS6050-27-2195

Size (IN) : 23.6  x  19.7  x  11.2

GS6050-36-2196

Size (IN) : 23.6  x  19.7  x  14.8

GA6040-22-2197

Size (IN) : 23.6  x  15.8  x  9.2

GA6040-27-2198

Size (IN) : 23.6  x  15.8  x  11.3

GA6040-36-2199

Size (IN) : 23.6  x  15.8  x  14.9

GS6040-13-2189

Size (IN) : 23.6  x  15.8  x  5.3

GS6040-22-2191

Size (IN) : 23.6  x  15.8  x  8.5

GS6040-27-2192

Size (IN) : 23.6  x  15.8  x  10.7
