NSO1207-5

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
  • An Ocean in Mind Product An Ocean in Mind Product
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

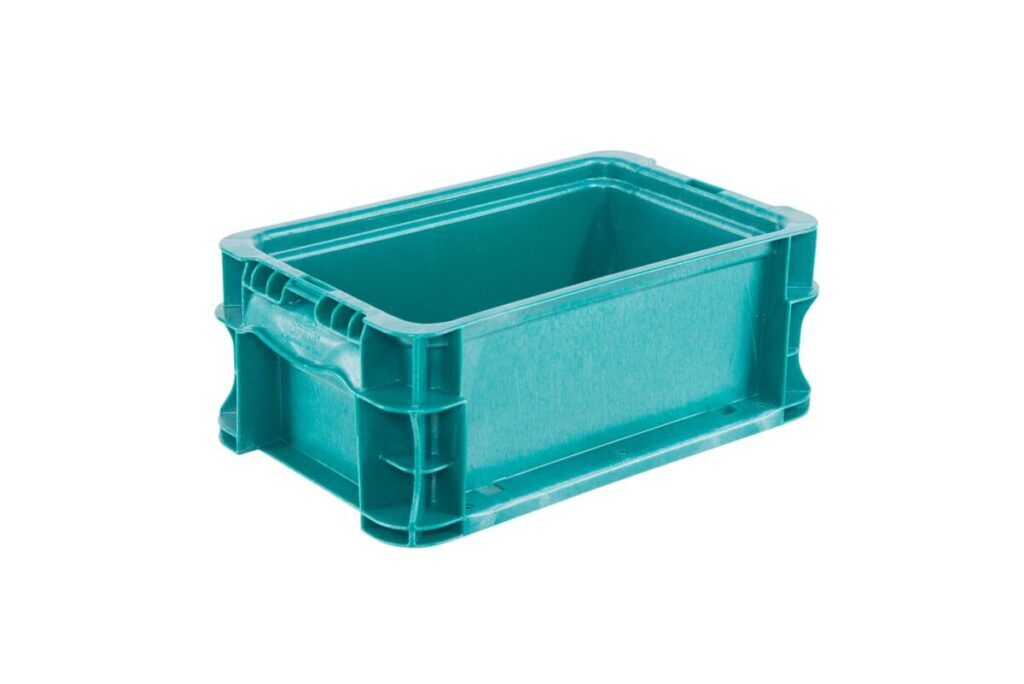

The StakPak System offers more than 20 straight-wall modular containers with advanced features to optimize your reusable packaging system. The NSO1207-5 is designed for just-in-time applications where the same containers are used for shipping, storage, and work-in-process. StakPaks are compatible with a wide variety of AIAG pallets, top caps, and seat belt systems. Reinforced external ribbing adds maximum stacking strength. Molded-in continuous bumper keeps dirt and dust from contaminating product. Drain holes in the bumper and handles ensure easy cleaning and draining. Smooth, straight interior walls offer maximum cube utilization and easy interface with custom interior dunnage.

  • 12 x 7 x 5 footprint ideal for small parts
  • In use, ORBIS does not typically recommend stacking these containers to the full 50″ height due to weight and safety concerns

Specifications

Outside Length In 12
Outside Width In 7.4
Outside Height In 5
Inside Bottom Length In 9.5
Inside Bottom Width In 5.6
Prod Clearance St In 4.5
Weight Smooth Textured Lb 1
Containers Per Lyr (45x48 PLT) orbis
53ft Trailer 50in Unit Loads 11232
Containers Per Layer 24

Options

Smooth Bottom

Full smooth surface available on StakPak container bottom.

Cardholders

Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

RFID Labels

Accommodates many types of RFID labels. These totes offer several flat areas designed specifically for the precise placement of labels and tags. Multiple label styles are available to meet technical requirements.

Container Hot Stamp

Hot Stamp identification is available for a wide variety of ORBIS totes. The original artwork must be supplied to ORBIS at the time of the order. Size, feasibility and available location of the hot stamp will vary for each container. Minimum shipment is required.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Compatible With

45 x 48 BR CIISF LP-168

Size (IN) : 48.7  x  45.7  x  7.5

45 x 48 BR SBRR CIISF LP-169

Size (IN) : 48.7  x  45.7  x  7.5

45 x 48 JOURNEY-171

Size (IN) : 48.9  x  45.9  x  6

45 x 48 PT-172

Size (IN) : 49.1  x  46.1  x  6.1

45 x 48 HDPT-170

Size (IN) : 49  x  46  x  6.1

45 x 48-2 MI SBRR CISS LP-200

Size (IN) : 49.4  x  46.4  x  7.6

45 x 48 SFP-203

Size (IN) : 48.8  x  45.8  x  5.8

45 x 48 BR MI CISF LP-201

Size (IN) : 48.7  x  45.7  x  6.6

45 x 48 BR SBRR CISF LP-202

Size (IN) : 48.7  x  45.7  x  6.6
