45 x 48 JOURNEY

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
  • An Ocean in Mind Product An Ocean in Mind Product
  • FM Approved FM Approved
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

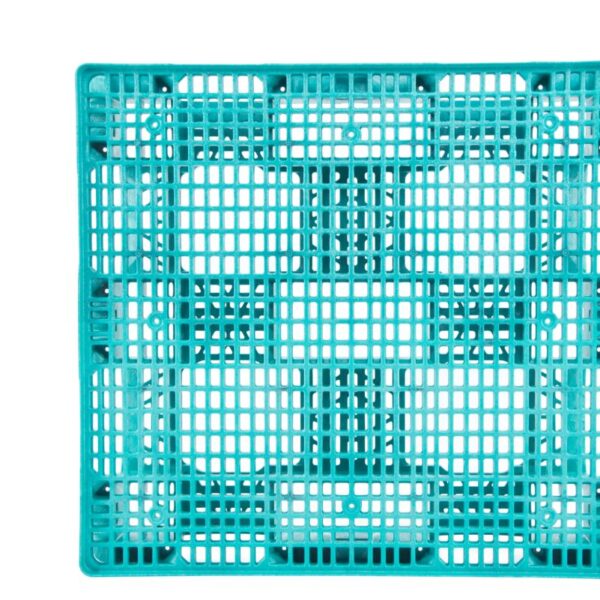

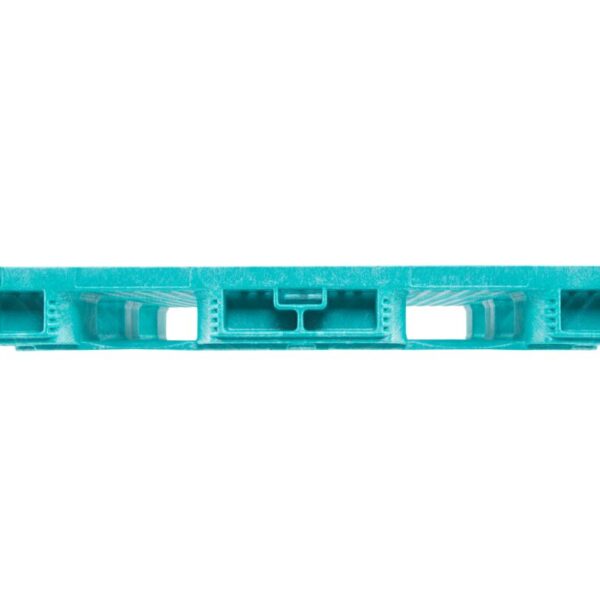

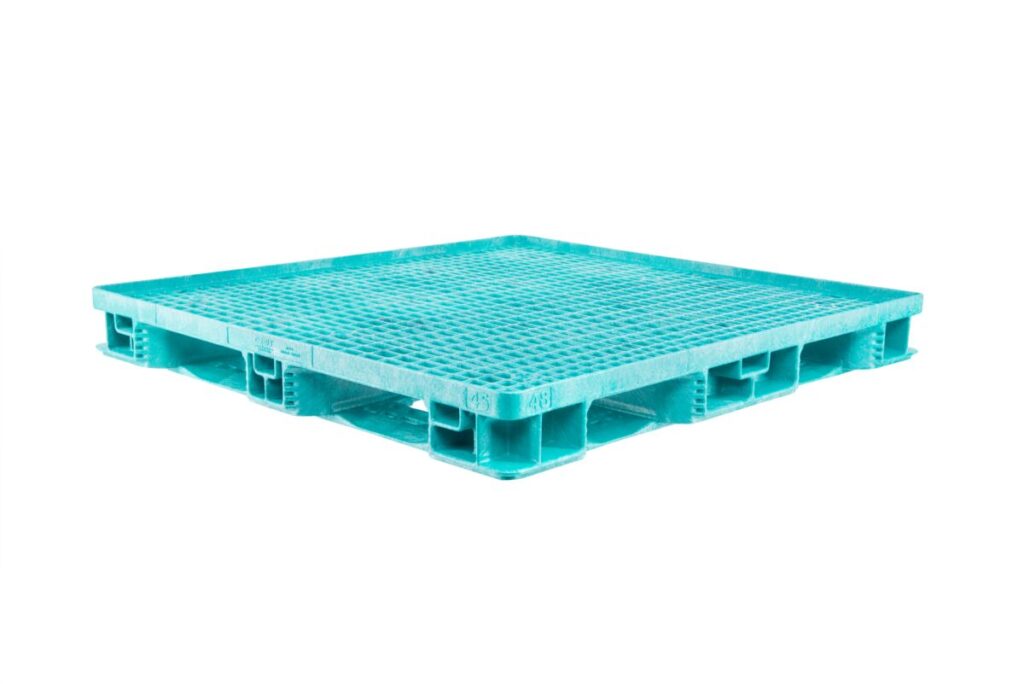

The ORBIS 45 x 48 Journey pallet is designed for handling and shipping heavy product loads in warehousing, processing, and manufacturing environments. These reusable plastic pallets offer a long service life and are ideal for stack loading, conveying systems, distribution, and static storage. The non-porous, smooth design makes these pallets easily cleanable. This plastic pallet offers an economic, environmental, and efficient alternative to wood pallets or skids.

Weight can vary for FM Approved model. Call or submit Request a Quote form for more information.

  • AIAG footprint Available in fire-retardant materials
  • Structural foam molded
  • Fork Truck Entry: 4-way
  • Hand Truck Entry: 2-way (45″ side)

Specifications

Outside Length In 48.9
Outside Width In 45.9
Inside Length In 48.3
Inside Width In 45.3
Height In 6
Weight Lb 55
Static Load Capacity Lb 30000
Dynamic Load Capacity Lb 4000
Truckload Qty 53ft Trailer 520

Options

Pallet Hot Stamp

Pallet identification is easy with ORBIS' Hot Stamp option. It utilizes .5” block capital letters in a predefined area on the pallet or top cap. Availability, requirements, and location for the hot stamp can vary for each pallet.

Molded-In Logo

Molded-In Logo identification is a type of permanent identification that is molded into product. Original artwork must be supplied to ORBIS at the time of the order. Availability, requirement, and location for the molded-in identification can vary for each product.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your pallet. These plates are designed for durability and a long service life. Availability, requirement, and location of the identification plates can vary for each pallet.

Seat Belt Retractors

Retractors located on pallet or top cap to house seat belt.

Compatible With

45 x 48 JOURNEY TOP CAP-222

Size (IN) : 48.6  x  45.6  x  2.5

NXO1215-5-2205

Size (IN) : 12  x  15  x  5

NXO1215-7-2206

Size (IN) : 12  x  15  x  7.5

NXO1215-9-2207

Size (IN) : 12  x  15  x  9.5

NXO2415-5-2208

Size (IN) : 24  x  15  x  5

NXO2415-7-2209

Size (IN) : 24  x  15  x  7.5

NXO2415-9-2210

Size (IN) : 24  x  15  x  9.5

NXO2415-11-2211

Size (IN) : 24  x  15  x  11

NXO2415-11.5-2212

Size (IN) : 24  x  15  x  11.5

NXO2415-14-2213

Size (IN) : 24  x  15  x  14.5

NXO2422-11-2215

Size (IN) : 24  x  22.5  x  10.9

NXO2422-14-2216

Size (IN) : 24  x  22.5  x  14.5

NXO2422-7-2214

Size (IN) : 24  x  22.5  x  7.5

NXO4815-7-2218

Size (IN) : 48  x  15  x  7.5

NSO1207-5-2219

Size (IN) : 12  x  7.4  x  5

NSO1215-4-2220

Size (IN) : 12  x  15  x  4

NSO1615-7-2221

Size (IN) : 16  x  15  x  7.5

NSO1615-9-2222

Size (IN) : 16  x  15  x  9.5

NSO2415-4-2223

Size (IN) : 24  x  15  x  4

NSO2422-9-2224

Size (IN) : 24  x  22.5  x  8.7

MSO1215-4-2225

Size (IN) : 12  x  15  x  4

MSO2415-4-2226

Size (IN) : 24  x  15  x  4

SO2411-9-2227

Size (IN) : 24  x  11.2  x  9.5

SO4815-11-2228

Size (IN) : 48  x  15  x  10.8

SO4822-7-2229

Size (IN) : 48  x  22.5  x  7.3

PLUS2415-16-2230

Size (IN) : 24  x  15  x  16.5

PLUS2415-18-2231

Size (IN) : 24  x  15  x  18

PLUS2415-21-2232

Size (IN) : 24  x  15  x  21.5

HHFC1215-7-2200

Size (IN) : 14.95  x  11.95  x  7.5

HHFC2415-7-2201

Size (IN) : 23.98  x  14.98  x  7.5

HHFC2415-11-2202

Size (IN) : 23.98  x  14.98  x  11

HHFC2422-7-2203

Size (IN) : 23.98  x  22.28  x  7.5

HHFC2422-11-2204

Size (IN) : 23.98  x  22.28  x  11
