45 x 48-2 MI SBRR CISS LP

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

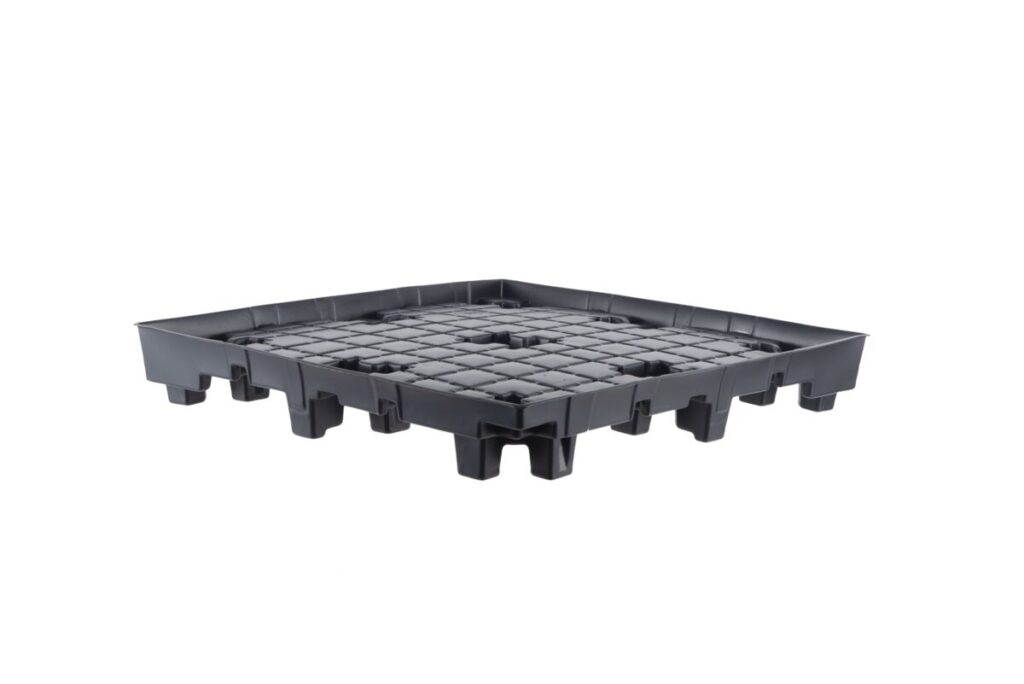

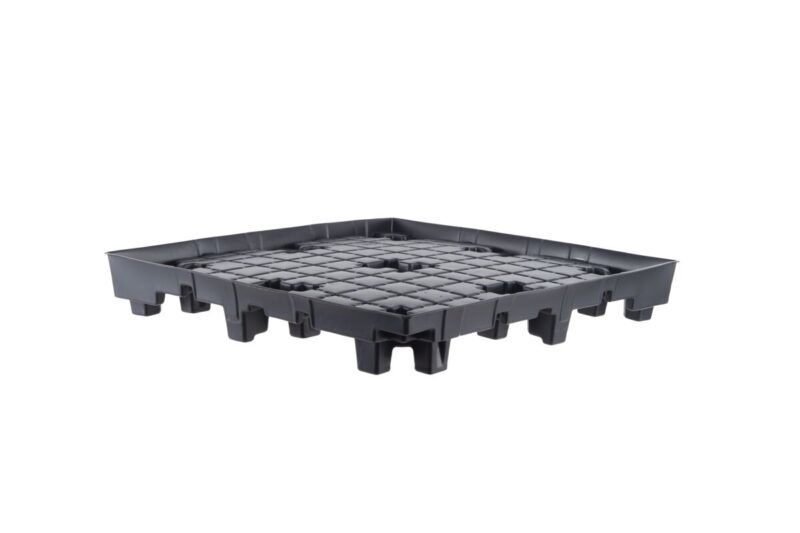

The ORBIS 45 x 48-B MI SBRR CISS LP pallet moves, stores and distributes unit loads within the industrial supply chain. It is based on the 45 x 48 AIAG standard. From raw material to finished goods, reusable plastic pallets protect product until it reaches its final destination. When empty, these pallets nest for a cost-efficient return trip or warehouse storage. Their dimensional consistency ensures an effortless interface with all types of high-speed automation and material-handling equipment. ORBIS nestable pallets are lightweight and easy to manually handle, with no nails, splinters, or broken boards to risk employee injury. This pallet offers an economic, environmental, and efficient alternative to wood pallets or skids.

  • Single sheet thermoformed (HMWPE)
  • Recyclable
  • Mirror-image design that allows the pallet to be used as a top cap
  • Fork Truck Entry: 4-way
  • Hand Truck Entry: 4-way

Specifications

Outside Length In 49.4
Outside Width In 46.4
Inside Length In 48.2
Inside Width In 45.2
Height In 7.6
Weight Lb 21
Nest Ratio 1.9:1
Static Load Capacity Lb 15000
Dynamic Load Capacity Lb 2500
Truckload Qty 53ft Trailer 754

Options

Molded-In Logo

Molded-In Logo identification is a type of permanent identification that is molded into product. Original artwork must be supplied to ORBIS at the time of the order. Availability, requirement, and location for the molded-in identification can vary for each product.

Pallet Hot Stamp

Pallet identification is easy with ORBIS' Hot Stamp option. It utilizes .5” block capital letters in a predefined area on the pallet or top cap. Availability, requirements, and location for the hot stamp can vary for each pallet.

ID Plates

Identification Plates are rigid plastic plates with adhesive backing that affix securely to your pallet. These plates are designed for durability and a long service life. Availability, requirement, and location of the identification plates can vary for each pallet.

Vinyl Labels

Vinyl Labels are flexible plastic labels with adhesive backing that affix securely to your pallet. These long lasting labels are for use on all ORBIS thermoformed (HMWPE) pallets. Availability, requirement, and location for the vinyl labels can vary for each pallet. *Special vinyl labels are now available for some structural foam pallets. Please contact ORBIS for details.

Custom Color Striping

Custom Color Striping is available on most thermoformed pallets and thermoformed OPTE Pallets to provide a unique identification alternative. Standard stripe widths are two and four inches. Stripe color must be specified at the time of the order and requires minimum order quantities.

Seat Belt Assemblies

Seat Belt Assemblies attach to the pallet and top cap to effectively secure pallet loads. ORBIS' innovative seat belts accommodate high stack loads and will not twist, tangle or jam. Retractors are typically located in the pallet legs and the buckles are installed on the top caps.

Compatible With

NXO1215-5-2205

Size (IN) : 12  x  15  x  5

NXO1215-7-2206

Size (IN) : 12  x  15  x  7.5

NXO1215-9-2207

Size (IN) : 12  x  15  x  9.5

NXO2415-5-2208

Size (IN) : 24  x  15  x  5

NXO2415-7-2209

Size (IN) : 24  x  15  x  7.5

NXO2415-9-2210

Size (IN) : 24  x  15  x  9.5

NXO2415-11-2211

Size (IN) : 24  x  15  x  11

NXO2415-11.5-2212

Size (IN) : 24  x  15  x  11.5

NXO2415-14-2213

Size (IN) : 24  x  15  x  14.5

NXO2422-11-2215

Size (IN) : 24  x  22.5  x  10.9

NXO2422-14-2216

Size (IN) : 24  x  22.5  x  14.5

NXO2422-7-2214

Size (IN) : 24  x  22.5  x  7.5

NXO4815-7-2218

Size (IN) : 48  x  15  x  7.5

NSO1207-5-2219

Size (IN) : 12  x  7.4  x  5

NSO1215-4-2220

Size (IN) : 12  x  15  x  4

NSO1615-7-2221

Size (IN) : 16  x  15  x  7.5

NSO1615-9-2222

Size (IN) : 16  x  15  x  9.5

NSO2415-4-2223

Size (IN) : 24  x  15  x  4

NSO2422-9-2224

Size (IN) : 24  x  22.5  x  8.7

MSO1215-4-2225

Size (IN) : 12  x  15  x  4

MSO2415-4-2226

Size (IN) : 24  x  15  x  4

SO2411-9-2227

Size (IN) : 24  x  11.2  x  9.5

SO4815-11-2228

Size (IN) : 48  x  15  x  10.8

SO4822-7-2229

Size (IN) : 48  x  22.5  x  7.3

PLUS2415-16-2230

Size (IN) : 24  x  15  x  16.5

PLUS2415-18-2231

Size (IN) : 24  x  15  x  18

PLUS2415-21-2232

Size (IN) : 24  x  15  x  21.5

HHFC1215-7-2200

Size (IN) : 14.95  x  11.95  x  7.5

HHFC2415-7-2201

Size (IN) : 23.98  x  14.98  x  7.5

HHFC2415-11-2202

Size (IN) : 23.98  x  14.98  x  11

HHFC2422-7-2203

Size (IN) : 23.98  x  22.28  x  7.5

HHFC2422-11-2204

Size (IN) : 23.98  x  22.28  x  11
