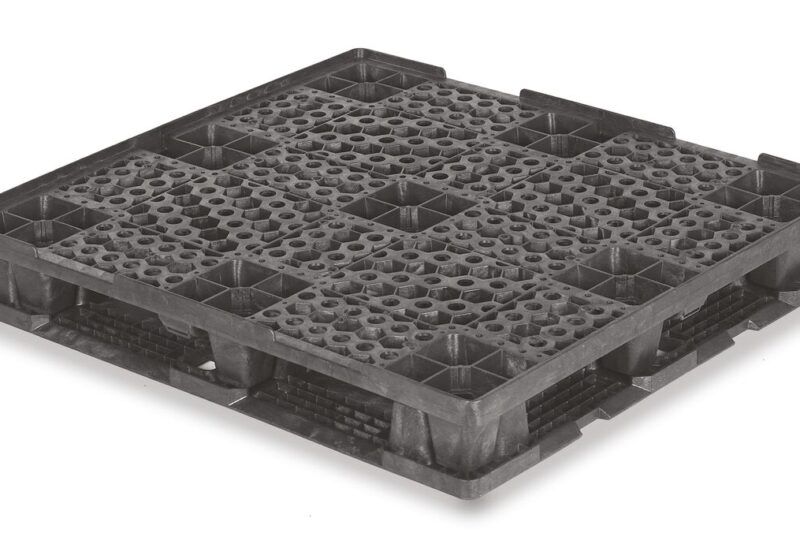

45 x 48-BR CIISF LP

The ORBIS 45 x 48-BR CIISF LP pallet is designed for handling and shipping heavy product loads in warehousing, processing and manufacturing environments. Based on the 45 x 48 AIAG footprint. These reusable plastic pallets offer a long service life and are ideal for stack loading, conveying systems, distribution and static storage. The non-porous, smooth design makes these pallets easily cleanable. This plastic pallet offers an economic, environmental and efficient alternative to wood pallets or skids.

  • Double deck design
  • Structural foam molded
  • Recyclable
  • Compatible with StakPak or Hand-Held Folding Containers
  • Fork Truck Entry: 4-way
  • Hand Truck Entry: 4-way

  Download Sales Sheet
  45 x 48-BR SBRR CIISF LP 45 x 48-BR CIISF LP
Outside Top Dimensions Length48.7"48.7"
Outside Top Dimensions Width45.7"45.7"
Inside Top Dimensions Length48.1"48.1"
Inside Top Dimensions Width45.1"45.1"
Base Dimension Height7.5"7.5"
Nest RatioN/AN/A
Weight62 lbs62 lbs
Load Capacity (Static)30,000 lbs30,000 lbs
Load Capacity (Dynamic)4,000 lbs4,000 lbs
Truckload Quantities 53 Ft Without Covers Assembled390390
45 x 48-BR SBRR CIISF LP
Outside Top Dimensions Length48.7"
Outside Top Dimensions Width45.7"
Inside Top Dimensions Length48.1"
Inside Top Dimensions Width45.1"
Base Dimension Height7.5"
Nest RatioN/A
Weight62 lbs
Load Capacity (Static)30,000 lbs
Load Capacity (Dynamic)4,000 lbs
Truckload Quantities 53 Ft Without Covers Assembled390
45 x 48-BR CIISF LP
Outside Top Dimensions Length48.7"
Outside Top Dimensions Width45.7"
Inside Top Dimensions Length48.1"
Inside Top Dimensions Width45.1"
Base Dimension Height7.5"
Nest RatioN/A
Weight62 lbs
Load Capacity (Static)30,000 lbs
Load Capacity (Dynamic)4,000 lbs
Truckload Quantities 53 Ft Without Covers Assembled390
