PLUS2415-18

  • Can be made with Recycled Plastics Can be made with Recycled Plastics
  • Can be made with Recycled Plastics Can be made with Recycled Plastics
Connect With Your ORBIS® Expert
Take the first step to a more sustainable supply chain and business. ORBIS is here to help.

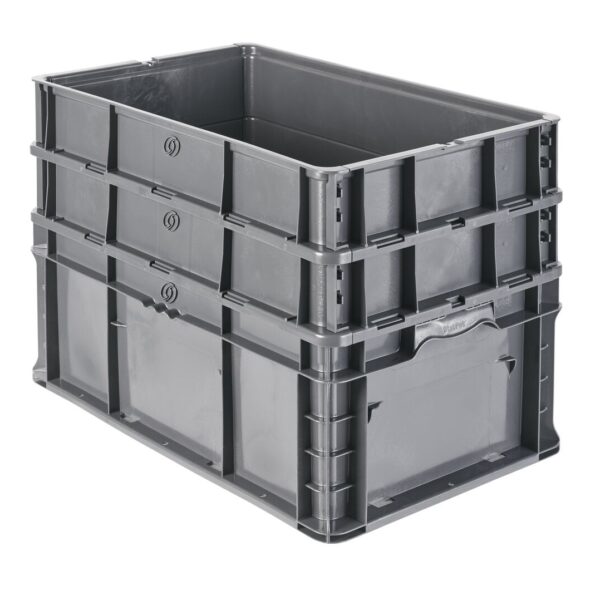

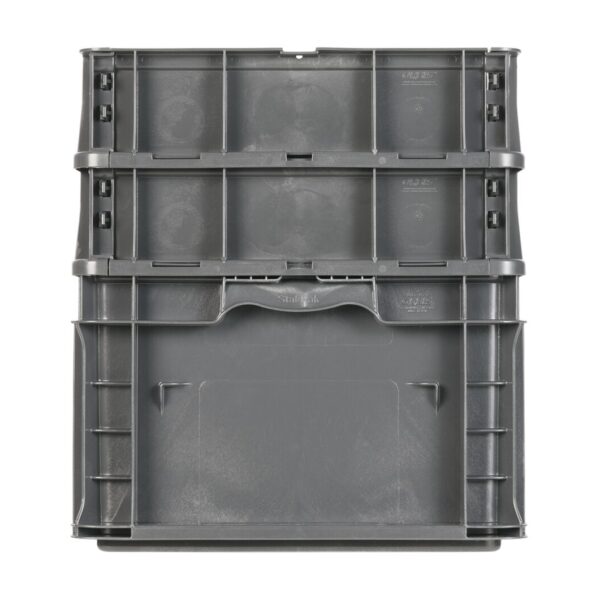

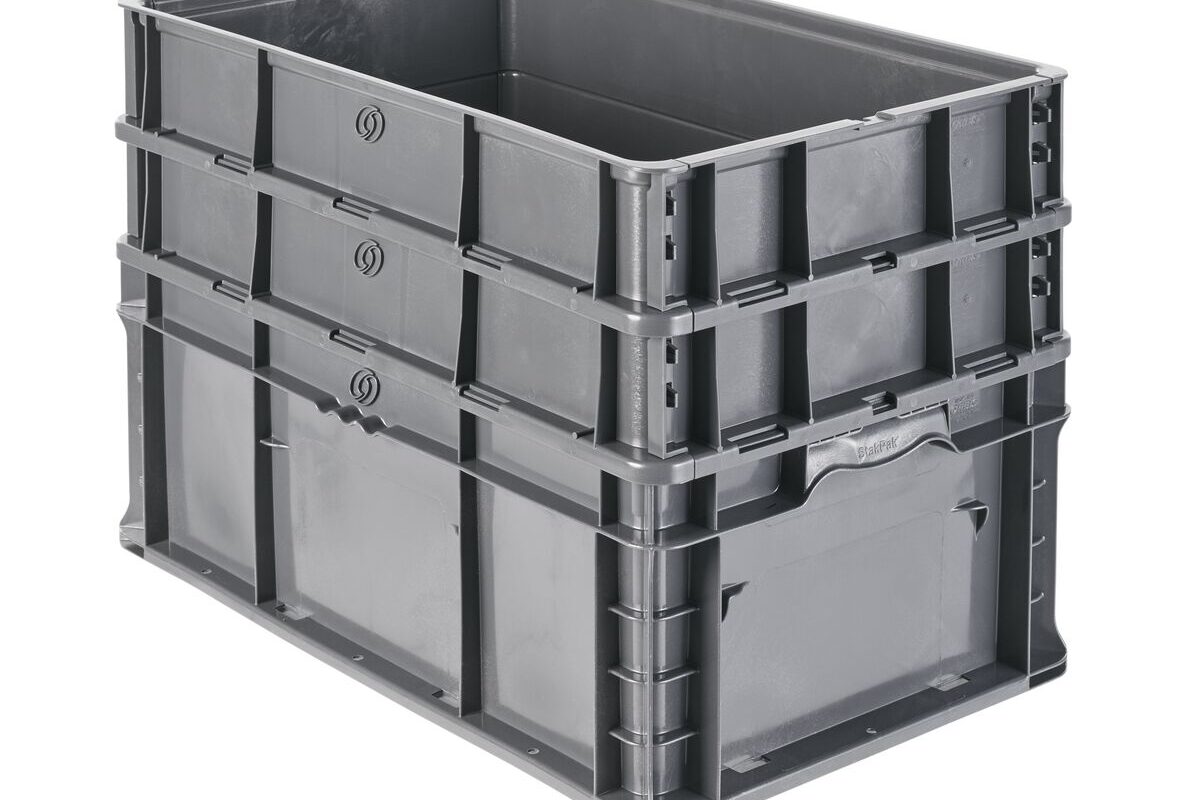

StakPak Plus provides a customizable solution for unique-shaped parts. ORBIS StakPaks have been used in industrial and automotive applications for more than 20 years. The StakPak Plus design combines traditional StakPak totes with various collarconfigurations to increase height for uniquely shaped parts. The StakPak Plus takes all the best attributes of the standardStakPak, including reusability and cost savings, and combines them with collars to increase container capacity. With vertical corner ribbons the collars, StakPak Plus totes are built for strength and durability.

  • 24 x 15 x 18 footprint
  • Utilizes standard totes
  • Collar strength and durability with vertical corner rib structure

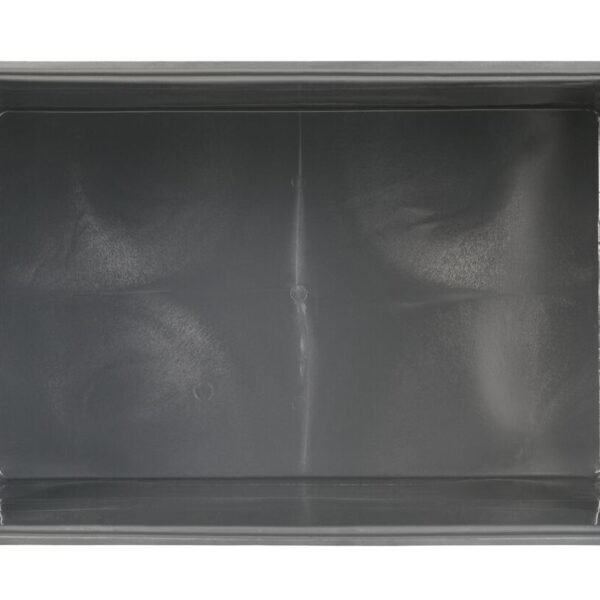

  • Smooth interior walls, ideal for dunnage integration
  • Lighter weight solution than alternative custom totes
  • Cubes out standard 45 x 48 plastic pallets
  • 100% recyclable at end of service life

Specifications

Outside Length In 24
Outside Width In 15
Outside Height In 18
Inside Bottom Length In 21.5
Inside Bottom Width In 13.1
Prod Clearance St In 17.4
Prod Clearance Reinforced In 16.9
53ft Trailer 50in Unit Loads 624
Containers Per Layer 6
Weight Smooth Textured Lb 6.1
Weight Reinforced Lb 6.4

Options

Smooth Bottom

Full smooth surface available on StakPak container bottom.

Reinforced Bottom

Molded-in reinforced surface available on StakPak container bottom.

Cardholders

Polyropylene cardholders that snap onto totes. Available in several sizes and accommodate removable cards, bar codes or other identification documents.

RFID Labels

Accommodates many types of RFID labels. These totes offer several flat areas designed specifically for the precise placement of labels and tags. Multiple label styles are available to meet technical requirements.

Container Hot Stamp

Hot Stamp identification is available for a wide variety of ORBIS totes. The original artwork must be supplied to ORBIS at the time of the order. Size, feasibility and available location of the hot stamp will vary for each container. Minimum shipment is required.

Label Placards

Label placards are placed on containers to allow for the easy application and removal of single-use labels. Prevents sticky residue and overlapping. Placards are removable and replaceable.

Compatible With

45 x 48 BR CIISF LP-168

Size (IN) : 48.7  x  45.7  x  7.5

45 x 48 BR SBRR CIISF LP-169

Size (IN) : 48.7  x  45.7  x  7.5

45 x 48 JOURNEY-171

Size (IN) : 48.9  x  45.9  x  6

45 x 48 PT-172

Size (IN) : 49.1  x  46.1  x  6.1

45 x 48 HDPT-170

Size (IN) : 49  x  46  x  6.1

45 x 48-2 MI SBRR CISS LP-200

Size (IN) : 49.4  x  46.4  x  7.6

45 x 48 SFP-203

Size (IN) : 48.8  x  45.8  x  5.8

45 x 48 BR MI CISF LP-201

Size (IN) : 48.7  x  45.7  x  6.6

45 x 48 BR SBRR CISF LP-202

Size (IN) : 48.7  x  45.7  x  6.6
